SM Professional
V 60M
- Power
- 1200 WATTS
- Series
- V Series Components
- Category
- Transducers
- Category
- Speaker Components

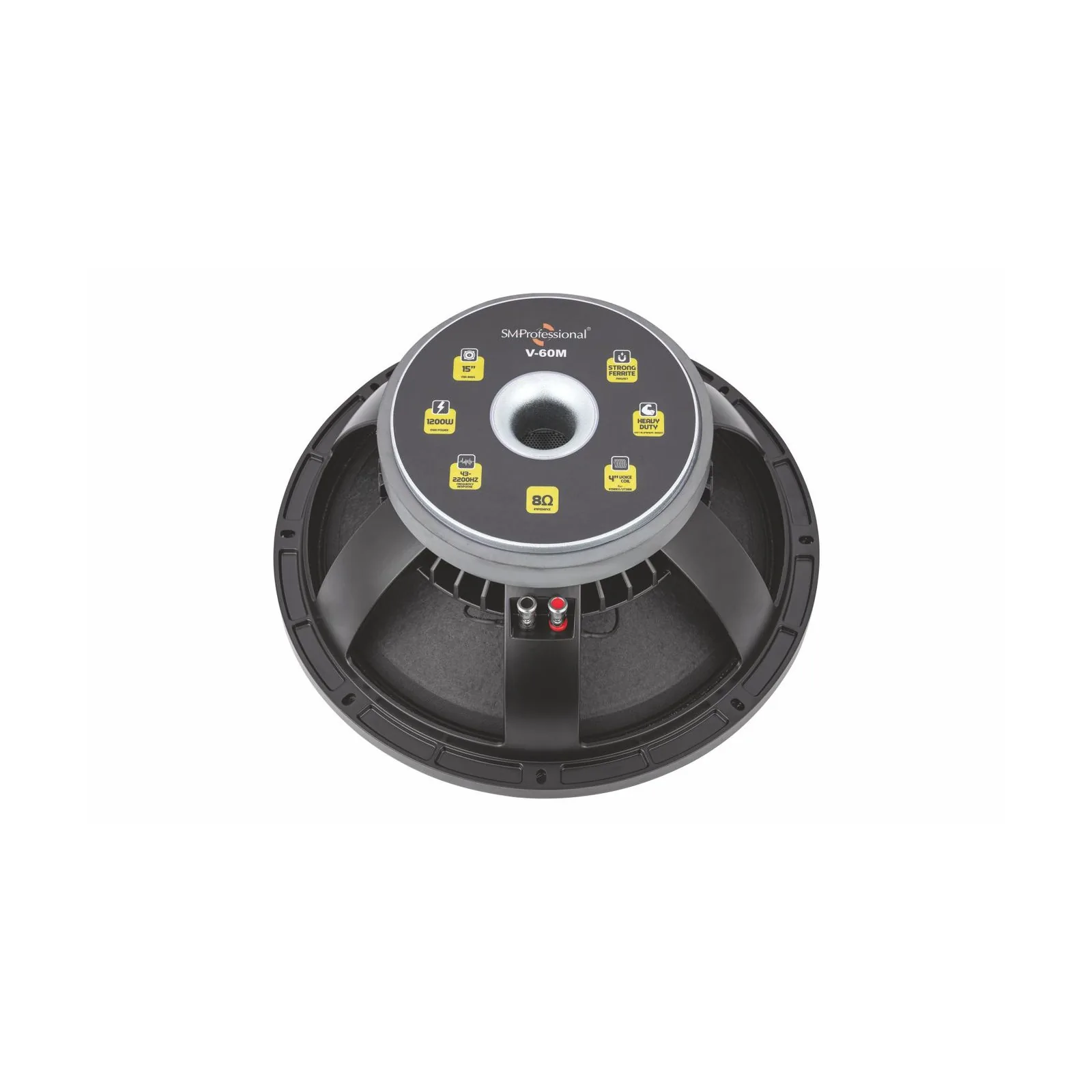

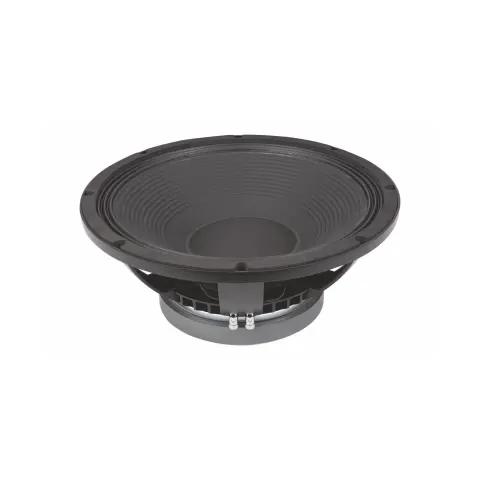

The SM Professional V 60M is a high quality 15” 1200W (Peak) / 600W (RMS) 8Ω mid-bass transducer.
Engineered using high-performance components, the transducer delivers excellent sound quality and punch at a value-driven price point.
Features
- High-performance 15” 600W (RMS) 8Ω transducer with amazing sensitivity and excursion capabilities
- Ventilated voice coil gap to reduce power compression, improve conversion efficiency, and optimum cooling.
- Heavy-duty die-cast frame with a wide flange for increased rigidity
- Engineered to suit a wide variety of enclosure designs to deliver high power, clarity, and punch
Specifications, Q&A and videos
| Series | V Series |
|---|---|
| Product Type | Mid-Bass |
| Power Output - (RMS / Peak) Watts | 600 / 1200 |
| Frequency Range (Hz) | 41-3200 |
| Impedance (Ω) | 8 |
| Sensitivity (1w @1m) dB | 97 |
| Nominal Diameter (mm/inch) | 380 / 15 |
| Voice Coil Diameter (mm/Inch) | 100 / 4 |
| Voice Coil Material | Copper |
| Kind of Layer | Inside/Outside |
| Basket | Aluminium |
| Net Weight (Kg) | 10.14 |
The V 60M is an SM Professional PA product in the V Series Components. The SM Professional V 60M is a high quality 15” 1200W (Peak) / 600W (RMS) 8Ω mid-bass transducer. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High-performance 15” 600W (RMS) 8Ω transducer with amazing sensitivity and excursion capabilities; Ventilated voice coil gap to reduce power compression, improve conversion efficiency, and optimum cooling; Heavy-duty die-cast frame with a wide flange for increased rigidity; Engineered to suit a wide variety of enclosure designs to deliver high power, clarity, and punch.
The V 60M product type is Mid-Bass.
The V 60M power output - (rms / peak) watts is 600 / 1200.
The V 60M frequency range (hz) is 41-3200.
The V 60M impedance (ω) is 8.
The V 60M sensitivity (1w @1m) db is 97.
