SM Professional
V 28Neo
- Power
- 1000 WATTS
- Series
- V Series Components
- Category
- Transducers
- Category
- Speaker Components
Neodymium magnet and other high-performance components, the driver delivers incredible power, clarity and punch.
Features

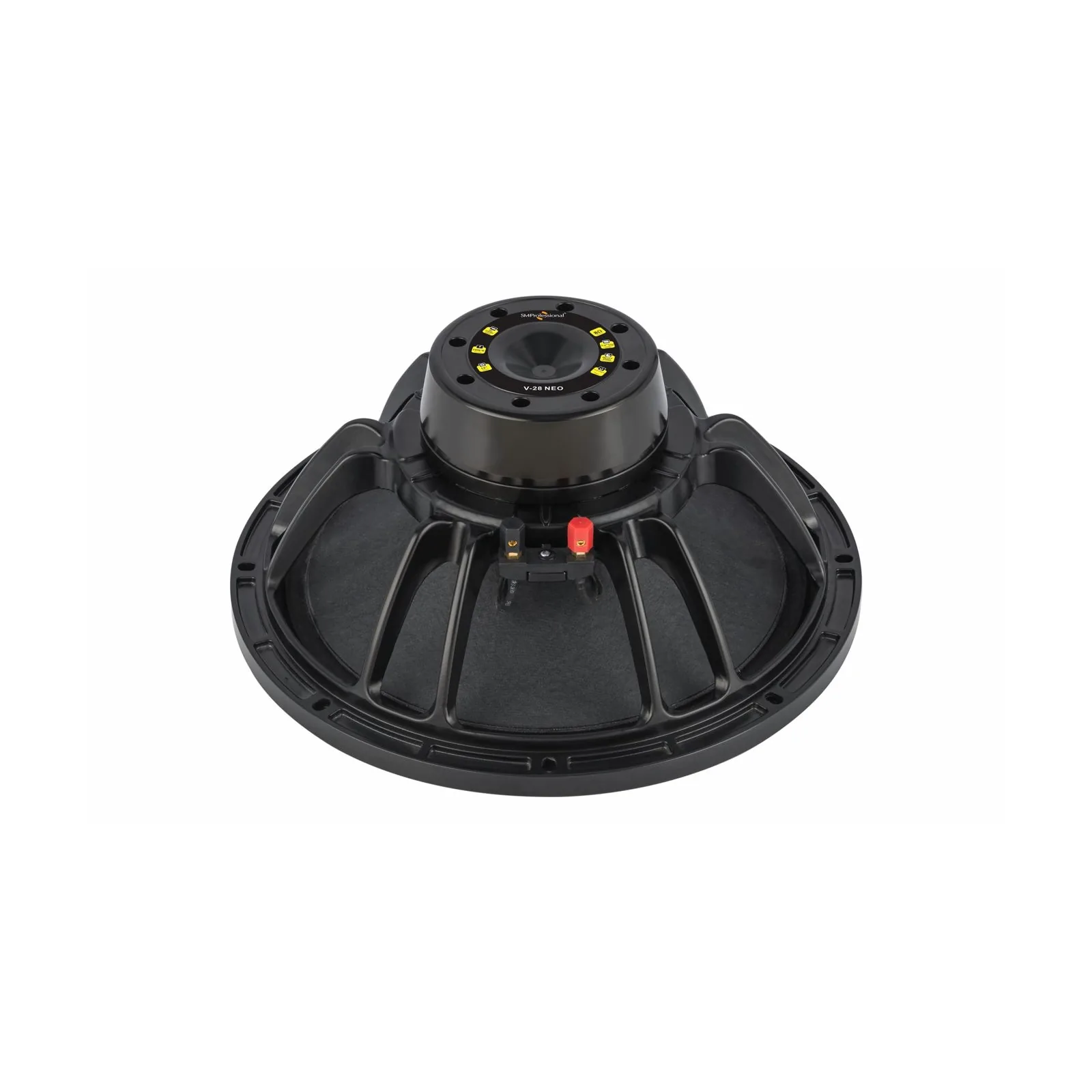

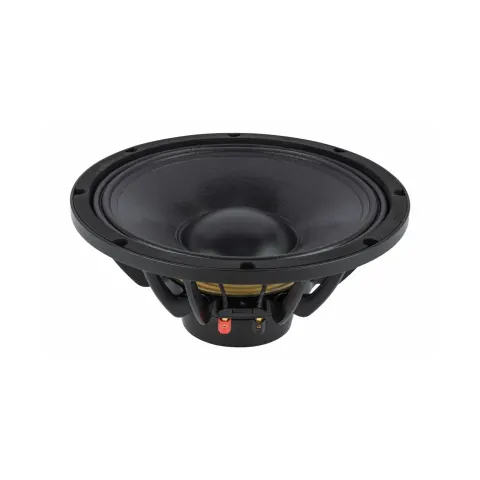

- Professional 12” 500W (RMS) 8Ω mid-bass transducer with amazing sensitivity and excursion capabilities.
- Ultra-lightweight and strong Neodymium magnet for stellar sonic capabilities.
- Ventilated voice coil gap to reduce power compression, improve conversion efficiency, and optimum cooling.
- Heavy-duty die-cast aluminium frame with a wide flange for increased rigidity.
- Engineered with high-performance components for incredible power, clarity and punch.
- Ideal for a wide variety of high power loudspeaker and line array cabinet enclosure designs.
Specifications, Q&A and videos
| Series | V Series |
|---|---|
| Product Type | Mid - Bass |
| Power Output - (RMS / Peak) Watts | 500 / 1000 |
| Frequency Range (Hz) | 60-3500 |
| Impedance (Ω) | 8 |
| Sensitivity (1w @1m) dB | 98.5 |
| Nominal Diameter (mm/inch) | 300 / 12 |
| Voice Coil Diameter (mm/Inch) | 86 / 3.4 |
| Voice Coil Material | Copper |
| Kind of Layer | Inside/Outside |
| Basket | Cast Aluminium |
| Net Weight (Kg) | 4.9 |
The V 28Neo is an SM Professional PA product in the V Series Components rated 1000 WATTS. Neodymium magnet and other high-performance components, the driver delivers incredible power, clarity and punch. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 12” 500W (RMS) 8Ω mid-bass transducer with amazing sensitivity and excursion capabilities; Ultra-lightweight and strong Neodymium magnet for stellar sonic capabilities; Ventilated voice coil gap to reduce power compression, improve conversion efficiency, and optimum cooling; Heavy-duty die-cast aluminium frame with a wide flange for increased rigidity; Engineered with high-performance components for incredible power, clarity and punch; Ideal for a wide variety of high power loudspeaker and line array cabinet enclosure designs.
The V 28Neo product type is Mid - Bass.
The V 28Neo power output - (rms / peak) watts is 500 / 1000.
The V 28Neo frequency range (hz) is 60-3500.
The V 28Neo impedance (ω) is 8.
The V 28Neo sensitivity (1w @1m) db is 98.5.
