SM Professional
SX-2
- Series
- SX Series
- Category
- Processors
- Category
- DSP / Speaker Management

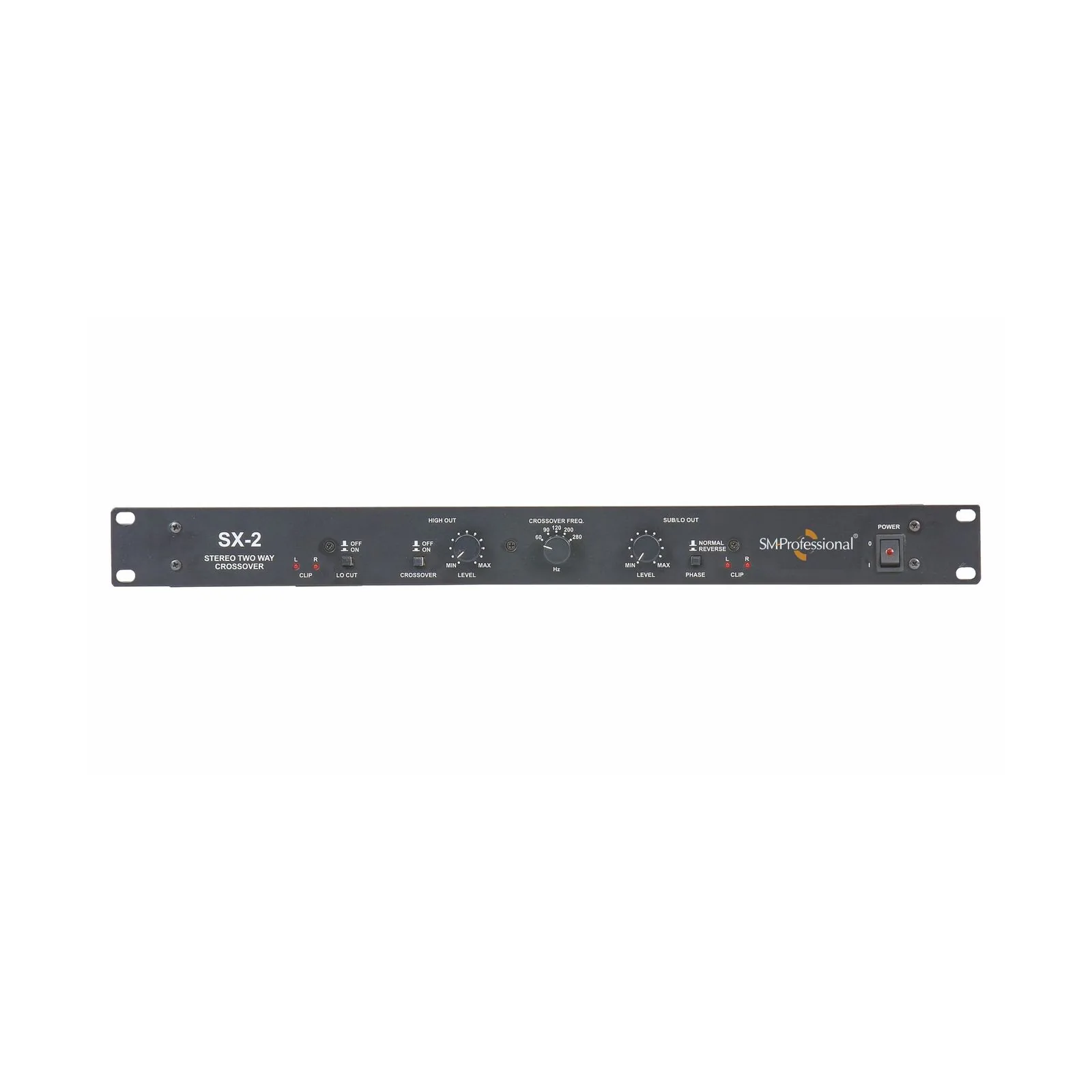

The SM Professional SX 2 is a 2 way stereo Active crossover.
Features
- 18dB for Low & High / Octave Slope.
- Crossover Selectable Frequency: 60, 90, 120, 200 & 280Hz
- Individual output control for both frequency bands.
- Clip LED, Phase Reverse, Low Cut & Bypass Switch.

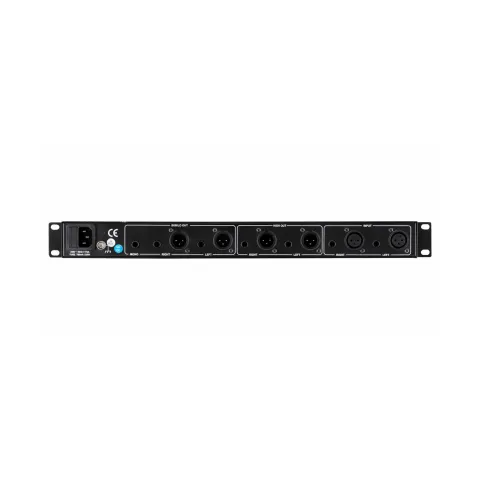

- Input & Output Connectors: XLR & 1/4" TRS Jack.
Specifications, Q&A and videos
| Input Impedance | 20K Ω , Balanced |
|---|---|
| Output Level/Impedance | 0.775V/600 Ω , Max 7V Balanced |
| S/N ratio | 90dB |
| Crossover frequency range | 60Hz, 90 Hz, 120Hz,200Hz, 280Hz |
| THD | <0.1% |
| Low Cut | -3dB@50 Hz |
| Input sensitivity | 0dBu |
| Slope (Low, Mid, High | 18dB/octave |
| Power Supply | 230 V / 50 Hz |
| Dimension (W X D X H)mm | 482 x 132 x 44 (1U) |
| Net Weight (Kgs.) | 2.7 |
The SX-2 is an SM Professional DSP / speaker management processors for live, touring, DJ, and install in the SX Series. The SM Professional SX 2 is a 2 way stereo Active crossover. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
18dB for Low & High / Octave Slope; Crossover Selectable Frequency: 60, 90, 120, 200 & 280Hz; Individual output control for both frequency bands; Clip LED, Phase Reverse, Low Cut & Bypass Switch; Input & Output Connectors: XLR & 1/4" TRS Jack.
The SX-2 input impedance is 20K Ω , Balanced.
The SX-2 output level/impedance is 0.775V/600 Ω , Max 7V Balanced.
The SX-2 s/n ratio is 90dB.
The SX-2 crossover frequency range is 60Hz, 90 Hz, 120Hz,200Hz, 280Hz.
The SX-2 thd is <0.1%.
