SM Professional
SFX-8
- Category
- Processors
- Category
- DSP / Speaker Management

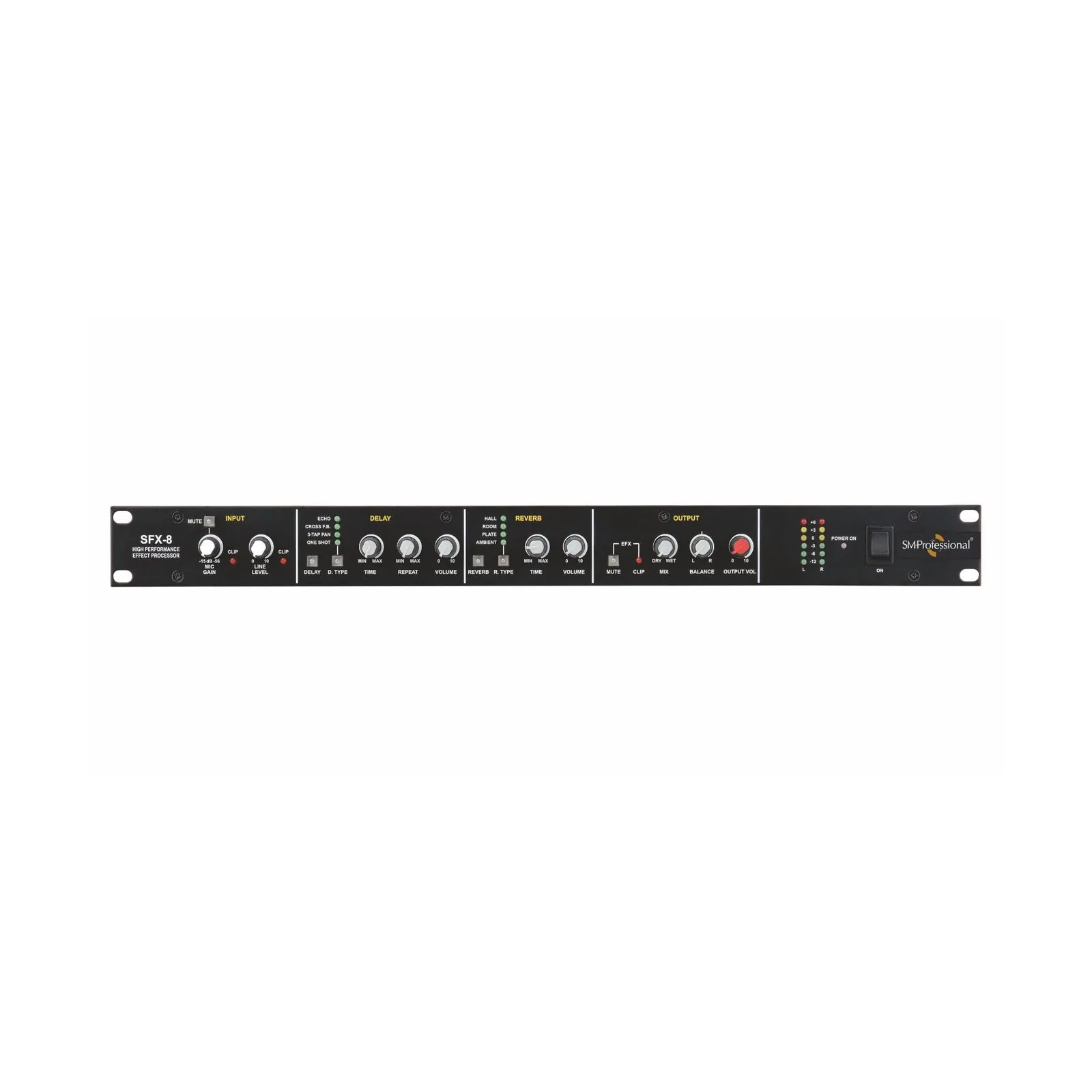

The SM Professional SFX 8 is a high performance digital effects processor designed for Professional performers who require high-fidelity effects.
Features
- Mic input (Balance) with GAIN control.
- Mono/Stereo Line input (Unbalance) with level control.
- Send/Return ensures the SFX8 can be used as an external effect processor with a mixer.
- Delay & Reverb with separate controls & selection.
- Delay & Reverb can be selected individually or combination of both giving more flexibility to user.
- Wet/Dry signal mix control.
- PAN control.
- 6 led bargraph.
- Stereo unbalanced Master output with level control.
Specifications, Q&A and videos
| Mono Mic Input Sensitivity | -56 dBu (±1dB) at Gain Control Max |
|---|---|
| Mono Mic Input Impedance | >3.0 KΩ |
| Stereo Line Input Sensitivity | 0dBu (±1dB) |
| Stereo Line Input Impedance | >27KΩ |
| Output Level | 0dBu |
| Output Impedance | <40Ω |
| Power Supply | 250V AC / 50Hz |
| Dimensions (W x D x H) mm | 482 x 175 x 44 (1U) |
| Net Weight (Kgs.) | 2.1 |
The SFX-8 is an SM Professional Processor. The SM Professional SFX 8 is a high performance digital effects processor designed for Professional performers who require high-fidelity effects. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Mic input (Balance) with GAIN control; Mono/Stereo Line input (Unbalance) with level control; Send/Return ensures the SFX8 can be used as an external effect processor with a mixer; Delay & Reverb with separate controls & selection; Delay & Reverb can be selected individually or combination of both giving more flexibility to user; Wet/Dry signal mix control.
The SFX-8 mono mic input sensitivity is -56 dBu (±1dB) at Gain Control Max.
The SFX-8 mono mic input impedance is >3.0 KΩ.
The SFX-8 stereo line input sensitivity is 0dBu (±1dB).
The SFX-8 stereo line input impedance is >27KΩ.
The SFX-8 output level is 0dBu.
