SM Professional

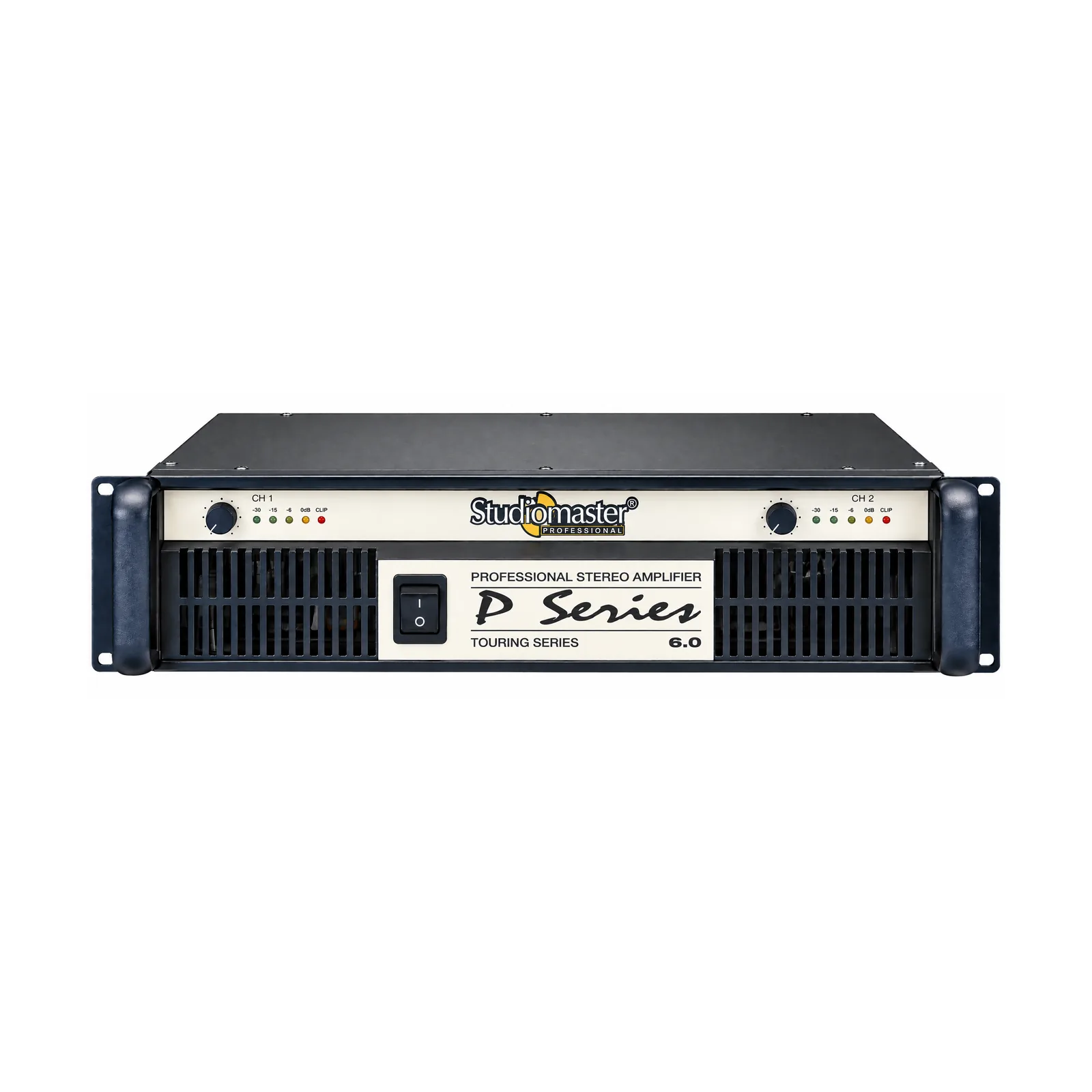

The PA 6. 0 is a PA Series range of high-power amplifier built to have outstanding sound quality, excellent power efficiency & guaranteed operational reliability .
The amplifier is using two types of power supplies, the switch mode power supply allows operation on voltages as Low as 130V, at the same time Linear Power Supply gives a punch packed performance !
| Series | P Series |
|---|---|
| 2 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 3000 W |
| 2 Ω (EIA), 1kHz , 1%THD | 2 x 5625 W |
| 4 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 2000 W |
| 4 Ω (EIA), 1kHz , 1%THD | 2 x 3100 W |
| 8 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 1300 W |
| 8 Ω (EIA), 1kHz , 1%THD | 2 x 1700 W |
| 4 Ω (True RMS),20Hz-20kHz,1% THD_ | 6000 W |
| 4 Ω (EIA), 1kHz , 1%THD_ | 11250 W |
| 8 Ω (T rue RMS),20Hz-20kHz,1% THD | 4000 W |
| 8 Ω (EIA), 1kHz , 1%THD_ | 6200 W |
| Damping factor (8 Ω) | > 400 :1 |
| Frequency Response | 20Hz - 20kHz (±0.5dB) |
| Protection Devices | Temperature, DC, RFI Short Circuit, Soft-Start, Over load |
| Input Connector (Per CH.) | XLR, 1/4” TRS Jack |
| Output Connector (Per CH.) | Speakon Connector |
| Dimensions (WxDxH)mm | 482 x 455 x 130 (3U) |
| Net Weight (Kgs.) | 37 |
The PA 6.0 is an SM Professional PA product in the PA Amplifiers. The PA 6. Available from Mansukhlal Sales Corp, an authorized dealer.
Professional high-power amplifiers; Input: Balanced XLR and 1/4” Stereo Jack; 3 switchable operational modes: Stereo, Mono & Bridge; High-current toroidal transformers with high-grade cores for greater transient response & low-noise even at 2 Ohms; High quality glass epoxy, double-sided PTH PCB’s & high-grade components ensures reliability in even tough ambient environs; Intelligent cooling using low-noise variable speed fans & direct mounted over-designed heat-sinks.
The PA 6.0 2 ω (true rms),20hz-20khz,1% thd is 2 x 3000 W.
The PA 6.0 2 ω (eia), 1khz , 1%thd is 2 x 5625 W.
The PA 6.0 4 ω (true rms),20hz-20khz,1% thd is 2 x 2000 W.
The PA 6.0 4 ω (eia), 1khz , 1%thd is 2 x 3100 W.
The PA 6.0 8 ω (true rms),20hz-20khz,1% thd is 2 x 1300 W.
