SM Professional
PA 4.5
- Power
- 4500 WATTS
- Channels
- 2 Channels
- Series
- PA Amplifiers
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers

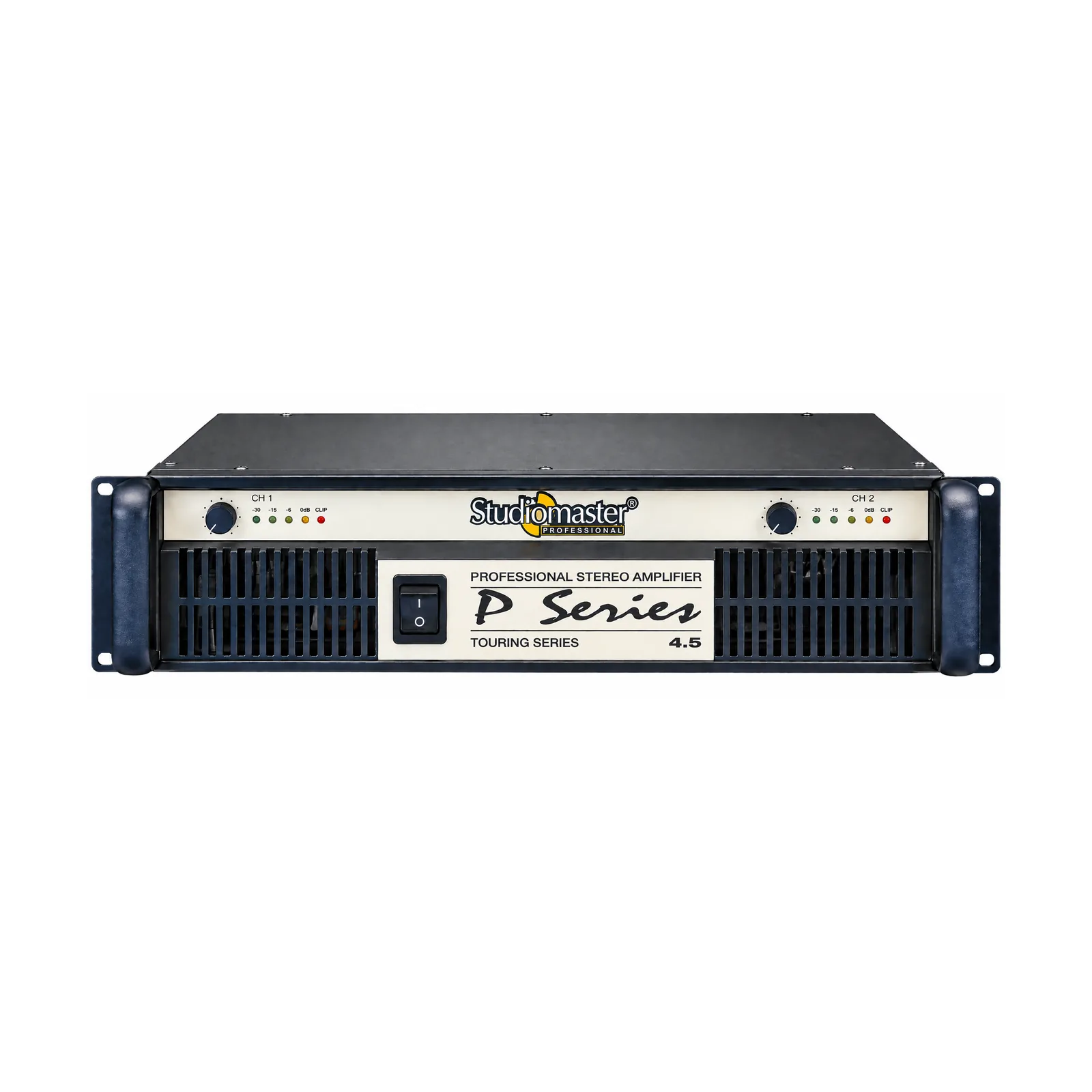

The PA 4.5 is a PA Series range of high-power amplifier built to have outstanding sound quality, excellent power efficiency & guaranteed operational reliability .
The amplifiers are using two types of power supplies, the switch mode power supply allows operation on voltages as Low as 130V, at the same time Linear Power Supply gives a punch packed performance !
Features
- Professional high-power amplifiers.
- Input: Balanced XLR and 1/4” Stereo Jack.
- 3 switchable operational modes: Stereo, Mono & Bridge.
- High-current toroidal transformers with high-grade cores for greater transient response & low-noise even at 2 Ohms.
- High quality glass epoxy, double-sided PTH PCB’s & high-grade components ensures reliability in even tough ambient environs.
- Intelligent cooling using low-noise variable speed fans & direct mounted over-designed heat-sinks.
- Sensitivity (0dB or+4 dB) selection switch allows flexibility in connection of input sources.
- Switchable Low-cut switch for protection & tight-low end performance.
- Switchable Limiter Switch to protects speakers from damage due to distorted input signals.
- 41-detent rotary volume knobs.
- Mute, Signal, Clip and fault LED indicators assists you to monitor performance.
- Rated for 2 Ohms operation.
Specifications, Q&A and videos
| Series | P Series |
|---|---|
| 2 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 2250 W |
| 2 Ω (EIA), 1kHz , 1%THD | 2 x 3900 W |
| 4 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 1600 W |
| 4 Ω (EIA), 1kHz , 1%THD | 2 x 2450 W |
| 8 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 950 W |
| 8 Ω (EIA), 1kHz , 1%THD | 2 x 1225 W |
| 4 Ω (True RMS),20Hz-20kHz,1% THD | 4500 W |
| 4 Ω (EIA), 1kHz , 1%THD | 7800 W |
| 8 Ω (T rue RMS),20Hz-20kHz,1% THD | 3200 W |
| 8 Ω (EIA), 1kHz , 1%THD | 4550 W |
| Damping factor (8 Ω) | > 400 :1 |
| Frequency Response | 20Hz - 20kHz (±0.5dB) |
| Protection Devices | Temperature, DC, RFI Short Circuit, Soft-Start, Over load |
| Input Connector (Per CH.) | XLR, 1/4” TRS Jack |
| Output Connector (Per CH.) | Speakon Connector |
| Dimensions (WxDxH)mm | 482 x 455 x 130 (3U) |
| Net Weight (Kgs.) | 33 |
The PA 4.5 is an SM Professional PA Series range of high-power amplifier in the PA Amplifiers rated 4500 WATTS. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional high-power amplifiers; Input: Balanced XLR and 1/4” Stereo Jack; 3 switchable operational modes: Stereo, Mono & Bridge; High-current toroidal transformers with high-grade cores for greater transient response & low-noise even at 2 Ohms; High quality glass epoxy, double-sided PTH PCB’s & high-grade components ensures reliability in even tough ambient environs; Intelligent cooling using low-noise variable speed fans & direct mounted over-designed heat-sinks.
The PA 4.5 2 ω (true rms),20hz-20khz,1% thd is 2 x 2250 W.
The PA 4.5 2 ω (eia), 1khz , 1%thd is 2 x 3900 W.
The PA 4.5 4 ω (true rms),20hz-20khz,1% thd is 2 x 1600 W.
The PA 4.5 4 ω (eia), 1khz , 1%thd is 2 x 2450 W.
The PA 4.5 8 ω (true rms),20hz-20khz,1% thd is 2 x 950 W.
