Ahuja
PA-200S
- Power
- 20 WATTS
- Series
- Vehicle Amplifiers
- Category
- Mixer Amplifiers
- Category
- Vehicle Amplifiers

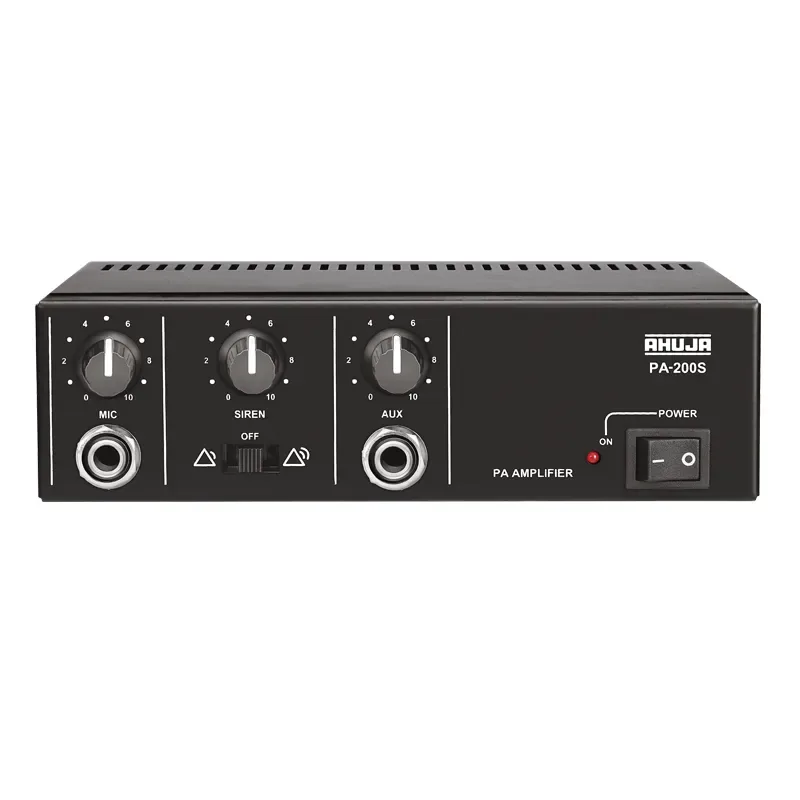

The Ahuja PA-200S is a 20W mobile PA mixer amplifier with a two tone siren (wailing and yelping) with volume control. Ideal for Police Vehicles, Crowd Control, Ambulances, Publicity Vans, Electioneering etc.
It has an amplifier mounting bracket supplied alongwith.
Features
- 1 Mic & 1 Aux Input with individual volume control.
- 12V Car Battery Operation.
- Two Tone Siren (Wailing & Yelping) with volume control.
- Recommended for use with Ahuja Mic MM-60M & Horn Speakers EHC-10/SUH-15.
- Complies in size with the DIN standard.
- Amplifier mounting bracket supplied alongwith.
- Ideal for Police Vehicles, Crowd Control, Ambulances, Publicity Vans, Electioneering etc.
Specifications, Q&A and videos
| Power Output | 30W Max., 20W RMS at 10% THD |
|---|---|
| Input Channels | 1 × Mic 5.0mV/4.7kΩ, 1 × Aux 100mV/330kΩ |
| Frequency Response | 250-10,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Siren | Two Tones |
| Speaker Outputs | 4Ω / 20W; 8Ω / 12W |
| Power Supply | 12V DC (Car Battery) |
| Dimensions | W178 × H52 × D157 mm |
| Weight | 1.10kg (with mounting clamp) |
The PA-200S is an Ahuja mobile PA mixer amplifier in the Vehicle Amplifiers. The Ahuja PA-200S is a 20W mobile PA mixer amplifier with a two tone siren (wailing and yelping) with volume control. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
1 Mic & 1 Aux Input with individual volume control; 12V Car Battery Operation; Two Tone Siren (Wailing & Yelping) with volume control; Recommended for use with Ahuja Mic MM-60M & Horn Speakers EHC-10/SUH-15; Complies in size with the DIN standard; Amplifier mounting bracket supplied alongwith.
The PA-200S input channels is 1 × Mic 5.0mV/4.7kΩ, 1 × Aux 100mV/330kΩ.
The PA-200S frequency response is 250-10,000Hz ±3dB.
The PA-200S signal to noise ratio is 60dB.
The PA-200S siren is Two Tones.
The PA-200S speaker outputs is 4Ω / 20W; 8Ω / 12W.
