SM Professional
PA 10.0
- Power
- 10000 WATTS
- Channels
- 2 Channels
- Series
- PA Amplifiers
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers

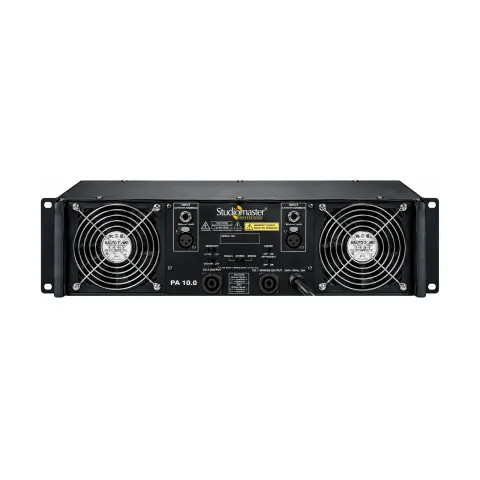

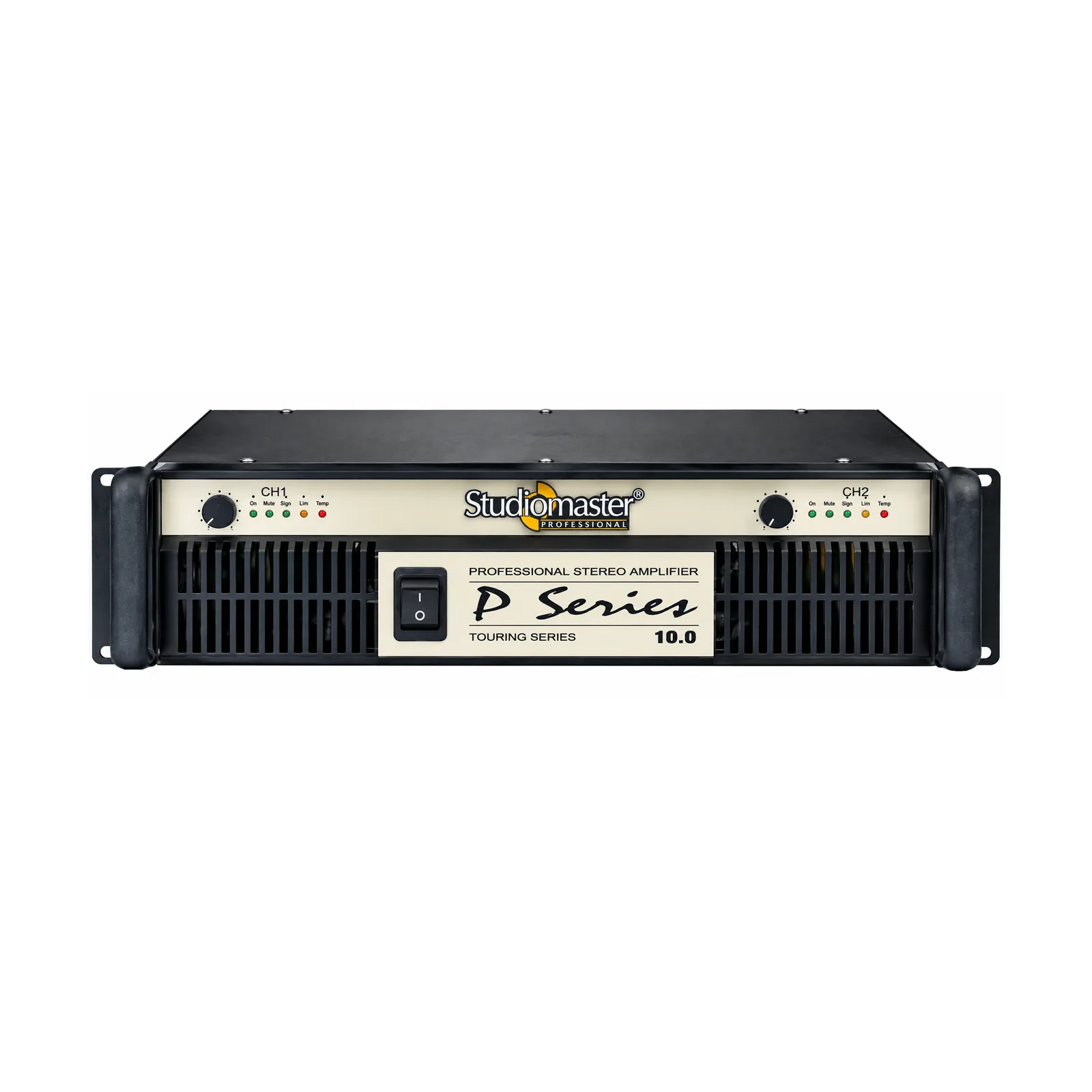

The PA series is our flagship range of high-power amplifiers built to have outstanding sound quality, excellent power efficiency, and guaranteed operational reliability.
Features
- Professional-grade high-power stereo amplifier.
- High-current toroidal transformers with high-endurance cores for greater transient response and low-noise even at 2Ω.
- High-quality glass epoxy, double-sided PTH PCBs, and high-grade components ensure reliability even in tough ambient environs.
- Intelligent cooling using low-noise variable speed fans and direct-mounted heatsinks for optimal heat dissipation.
- Sensitivity selectable between 0dB or +4dB for flexibility in connection of input sources.
- Low THD and high damping factor for excellent sound quality.
- Switchable low-cut for protection and a tight low-end performance.
- The Limiter switch provided protects the speakers from damage due to distorted input signals.
- 41-detent rotary volume control knobs.
- 3 switchable operational modes: stereo, mono, and bridge.
- Audio-grade balanced XLR and 1⁄4” stereo jack input connectors.
- High-performance Speakon output connectors.
- On, mute, signal, limiter, and temperature LED indicators assists in monitoring performance.
- Rated for stable 2Ω operation.
Specifications, Q&A and videos
| 2 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 5000 W |
|---|---|
| 2 Ω (EIA), 1kHz, 1%THD | 2 x 7300 W |
| 4 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 3100 W |
| 4 Ω (EIA), 1kHz, 1%THD | 2 x 4200 W |
| 8 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 1900 W |
| 8 Ω (EIA), 1kHz, 1% THD | 2 x 2200 W |
| 4 Ω (EIA), 1kHz , 1% THD | 13800 W |
| 8 Ω (True RMS), 20Hz-20kHz,1% THD | 6200 W |
| 8 Ω (EIA), 1kHz , 1% THDx | 8100 W |
| Damping Factor (8 Ω) | >400:1 |
| Frequency Response | 20Hz-20kHz (± 0.5dB) |
| Protection | Temperature, DC, RFI, Short Circuit, Soft-Start, and Overload |
| Input Connector (Per Channel) | XLR and 1⁄4” TRS Jack |
| Output Connector (Per Channel) | Speakon |
| Dimension (W x D X H) mm | 482 x 595 x 133 |
| Net Weight (Kg) | 45 |
The PA 10.0 is an SM Professional PA Series high-power amplifiers for live and install in the PA Amplifiers rated 10000 WATTS. The PA series is our flagship range of high-power amplifiers built to have outstanding sound quality, excellent power efficiency, and guaranteed operational reliability. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional-grade high-power stereo amplifier; High-current toroidal transformers with high-endurance cores for greater transient response and low-noise even at 2Ω; High-quality glass epoxy, double-sided PTH PCBs, and high-grade components ensure reliability even in tough ambient environs; Intelligent cooling using low-noise variable speed fans and direct-mounted heatsinks for optimal heat dissipation; Sensitivity selectable between 0dB or +4dB for flexibility in connection of input sources; Low THD and high damping factor for excellent sound quality.
The PA 10.0 2 ω (true rms), 20hz-20khz, 1% thd is 2 x 5000 W.
The PA 10.0 2 ω (eia), 1khz, 1%thd is 2 x 7300 W.
The PA 10.0 4 ω (true rms), 20hz-20khz, 1% thd is 2 x 3100 W.
The PA 10.0 4 ω (eia), 1khz, 1%thd is 2 x 4200 W.
The PA 10.0 8 ω (true rms), 20hz-20khz, 1% thd is 2 x 1900 W.
