Ahuja
OSX-666T
- Power
- 60 WATTS
- Series
- OSX Series
- Category
- Speakers
- Category
- Wall Speakers

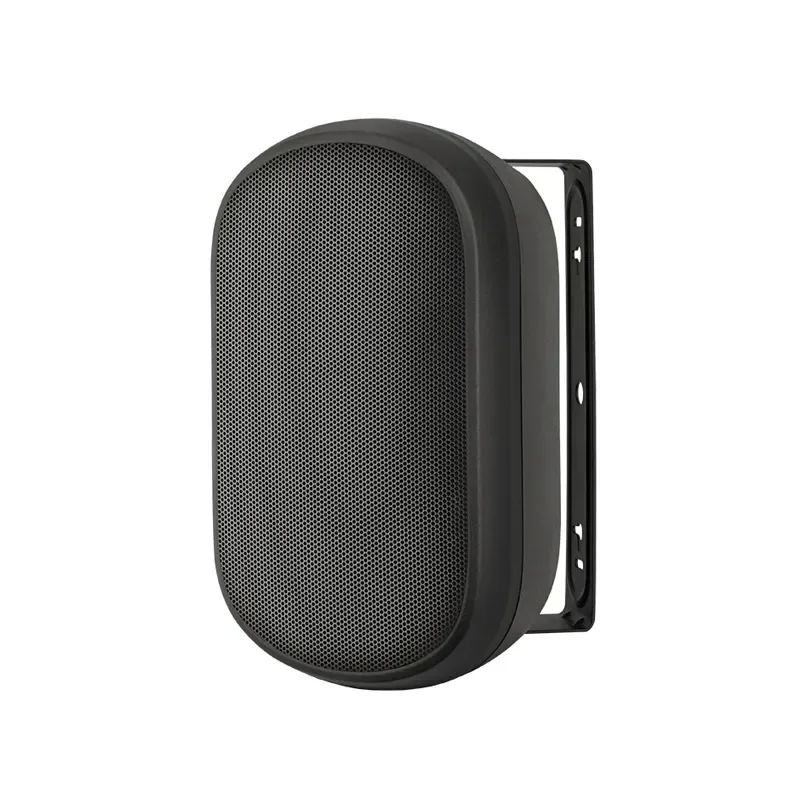

The Ahuja OSX-666T is a 60W weather resistant PA wall speaker. It combines a Polypropylene Cone Woofer, a Titanium Silk Dome Tweeter and a Crossover Network.
Power taps can be selected through a slotted rotary switch knob at the rear, accessible after removing the terminal cover.
Features
- Reliable IP-66 rated, weather resistant plastic cabinet wall speaker with outstanding sound clarity. Suitable for both indoor and outdoor use. Suitable for use on 100V line, or on direct 8 Ω impedance.
- Comprises of a Polypropylene Cone Woofer, a Titanium Silk Dome Tweeter and a Crossover Network.
- Power taps can be selected through a slotted rotary switch knob at the rear, accessible after removing the terminal cover.
- 'U' type metal bracket for firm mounting and optimum positioning of the wall speaker.
Specifications, Q&A and videos
| Power Rating | 60W/8Ω; 30W/100V |
|---|---|
| Power Taps on 100V | 30/15/7.5W |
| Frequency Response | 95-20,000Hz |
| SPL at 1kHz (1W/1m) | 87dB |
| Speaker | Woofer 163mm (6½”), Tweeter 25mm (1.0”) |
| Dimensions | W205 × H330 × D199 mm |
| Weight | 1.31kg |
The OSX-666T is an Ahuja weather resistant PA wall speaker in the OSX Series rated 60 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Reliable IP-66 rated, weather resistant plastic cabinet wall speaker with outstanding sound clarity. Suitable for both indoor and outdoor use. Suitable for use on 100V line, or on direct 8 Ω impedance; Comprises of a Polypropylene Cone Woofer, a Titanium Silk Dome Tweeter and a Crossover Network; Power taps can be selected through a slotted rotary switch knob at the rear, accessible after removing the terminal cover; 'U' type metal bracket for firm mounting and optimum positioning of the wall speaker.
The OSX-666T power taps on 100v is 30/15/7.5W.
The OSX-666T frequency response is 95-20,000Hz.
The OSX-666T spl at 1khz (1w/1m) is 87dB.
The OSX-666T speaker is Woofer 163mm (6½”), Tweeter 25mm (1.0”).
The OSX-666T dimensions is W205 × H330 × D199 mm.
