Ahuja
ASX-912B
- Power
- 90 WATTS
- Series
- ASX Series
- Category
- Speakers
- Category
- Wall Speakers
The Ahuja ASX-912B is a 90W 2-way compact PA wall speaker. It combines a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network.
Ideal for various background music and general PA application.
Features

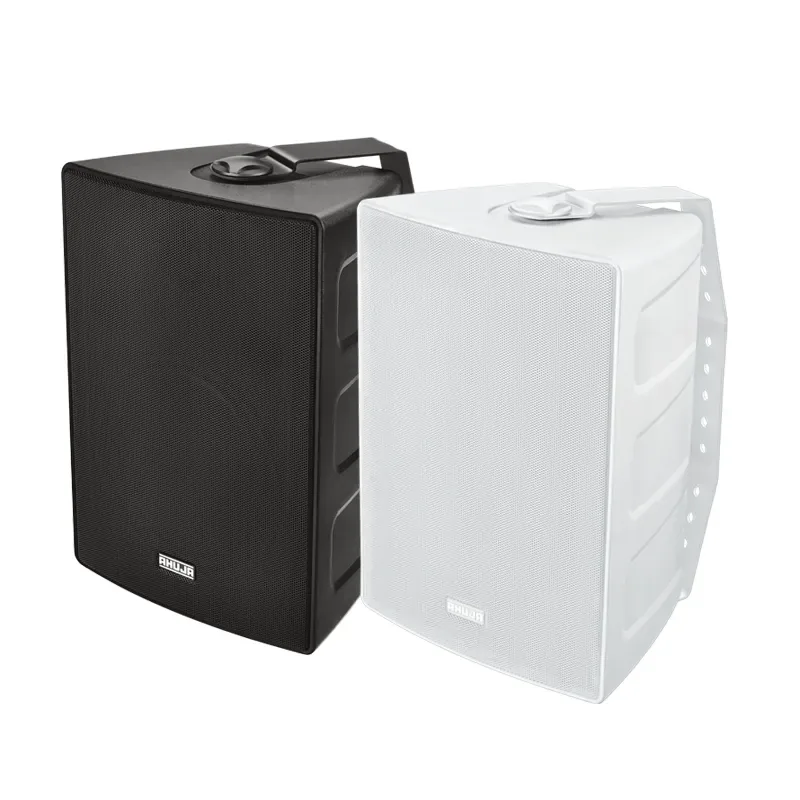

- High fidelity 2-Way PA Wall Speaker in compact & attractive Black or White plastic housing. The suffix B & BT denote Black cabinet, and W & WT denote White cabinet.
- Comprises of a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network.
- ASX-912B and ASX-912W are low impedance 8Ω speakers.
- ASX-912BT and ASX-912WT are meant for use on 100V line with power taps of 90W, 60W, 30W & 15W.
- Easy power tap selection through a slotted rotary switch knob at the rear.
- 'U' type bracket for convenient & firm mounting of the wall speaker.
- Ideal for various background music & general PA application.
Specifications, Q&A and videos
| Power Rating | 90W RMS / 135W Max. |
|---|---|
| Power Taps | 90W, 90/60/30/15W |
| Impedance/Voltage | 8Ω / 100V |
| Frequency Response | 55-20,000Hz |
| SPL at 1kHz (1W/1m) | 90dB |
| Speaker | Woofer 200mm (8”), Tweeter 25mm (1”) |
| Dimensions | W270 × H378 × D200 mm |
| Weight | 4.97kg/6.30kg |
The ASX-912B is an Ahuja 2-way compact PA wall speaker in the ASX Series rated 90 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High fidelity 2-Way PA Wall Speaker in compact & attractive Black or White plastic housing. The suffix B & BT denote Black cabinet, and W & WT denote White cabinet; Comprises of a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network; ASX-912B and ASX-912W are low impedance 8Ω speakers; ASX-912BT and ASX-912WT are meant for use on 100V line with power taps of 90W, 60W, 30W & 15W; Easy power tap selection through a slotted rotary switch knob at the rear; 'U' type bracket for convenient & firm mounting of the wall speaker.
The ASX-912B power taps is 90W, 90/60/30/15W.
The ASX-912B impedance/voltage is 8Ω / 100V.
The ASX-912B frequency response is 55-20,000Hz.
The ASX-912B spl at 1khz (1w/1m) is 90dB.
The ASX-912B speaker is Woofer 200mm (8”), Tweeter 25mm (1”).
