Ahuja
NBA-20DP
- Power
- 12 WATTS
- Series
- NBA Neckband PA
- Category
- Portable PA
- Category
- Neckband PA

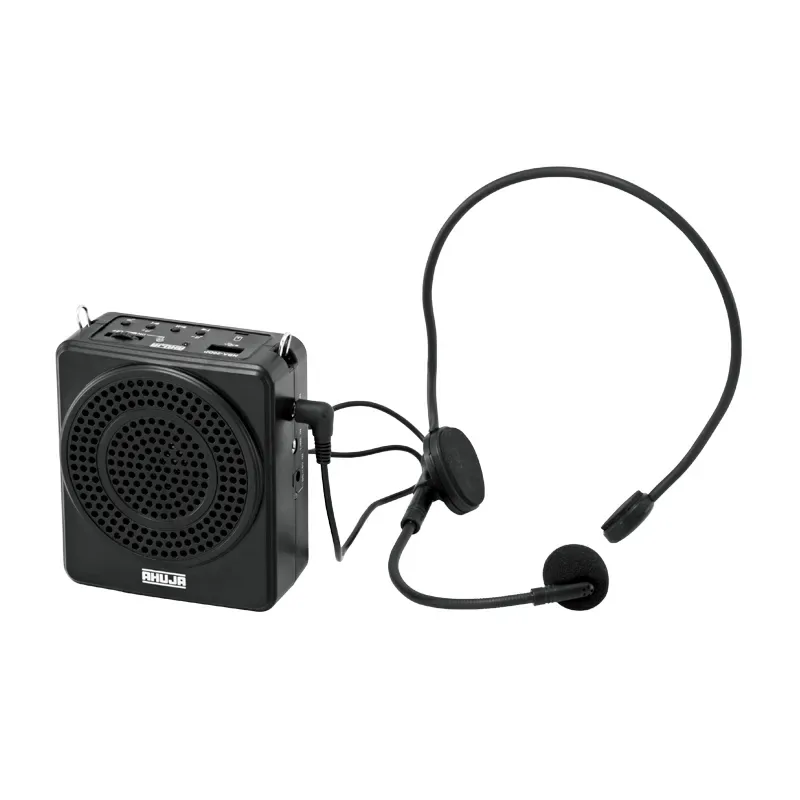

The Ahuja NBA-20DP is a 12W neckband PA system. It has a ø 3.5mm mic input socket for connecting the headband microphone and 3.5mm line input socket for connecting a dvd, cd or an MP3 player.
Built-in MP3 digital player for playback of music through a USB drive or a TF card.
Features
- Elegant and compact ultra portable PA amplifier with max. output power of 12W.
- Built-in MP3 digital player for playback of music through a USB drive or a TF card.
- Special circuitry provides low distortion even at high output power. Built-in high capacity rechargeable lithium-ion battery. Low battery LED indicator.
- ø 3.5mm Mic input socket for connecting the headband microphone and 3.5mm Line input socket for connecting a DVD, CD or an MP3 player.
- Apart from the headband mic provided, the mic input socket can also accept input from Ahuja Condenser Microphones CTP-10DX, UTP-30 (used without their cell compartment).
- Convenience of use. The unit can be used while hanging on the shoulder or by putting around the neck.
- Ideal for: Teaching, Tour Guides, Yoga Classes, Play Schools etc. …
Specifications, Q&A and videos
| Power Output | 12W Max. |
|---|---|
| Speaker Impedance | 4Ω |
| Input Channel | Mic-1: 1.0mV, Line: 250mV |
| Digital Player | USB & TF Card (16GB max.) |
| Frequency Response | 80-12,000Hz |
| AC Adapter | AC: 100-240V, 50/60HZ; DC: 5V, 750mA |
| Rechargeable Lithium-ion Battery | 3.7V, 2000mAh |
| Headband Microphone Element | Condenser, Cardioid |
| Dimensions | W86 × H98 × D44 mm (amplifier only) |
| Weight (with rechargeable battery) | 0.34kg approx. (amplifier only) |
The NBA-20DP is an Ahuja neckband PA system in the NBA Neckband PA rated 12 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Elegant and compact ultra portable PA amplifier with max. output power of 12W; Built-in MP3 digital player for playback of music through a USB drive or a TF card; Special circuitry provides low distortion even at high output power. Built-in high capacity rechargeable lithium-ion battery. Low battery LED indicator; ø 3.5mm Mic input socket for connecting the headband microphone and 3.5mm Line input socket for connecting a DVD, CD or an MP3 player; Apart from the headband mic provided, the mic input socket can also accept input from Ahuja Condenser Microphones CTP-10DX, UTP-30 (used without their cell compartment); Convenience of use. The unit can be used while hanging on the shoulder or by putting around the neck.
The NBA-20DP speaker impedance is 4Ω.
The NBA-20DP input channel is Mic-1: 1.0mV, Line: 250mV.
The NBA-20DP digital player is USB & TF Card (16GB max.).
The NBA-20DP frequency response is 80-12,000Hz.
The NBA-20DP ac adapter is AC: 100-240V, 50/60HZ; DC: 5V, 750mA.
