Ahuja
AM-22HSD
- Power
- 28 WATTS
- Series
- AM Megaphones
- Category
- Portable PA
- Category
- Megaphones

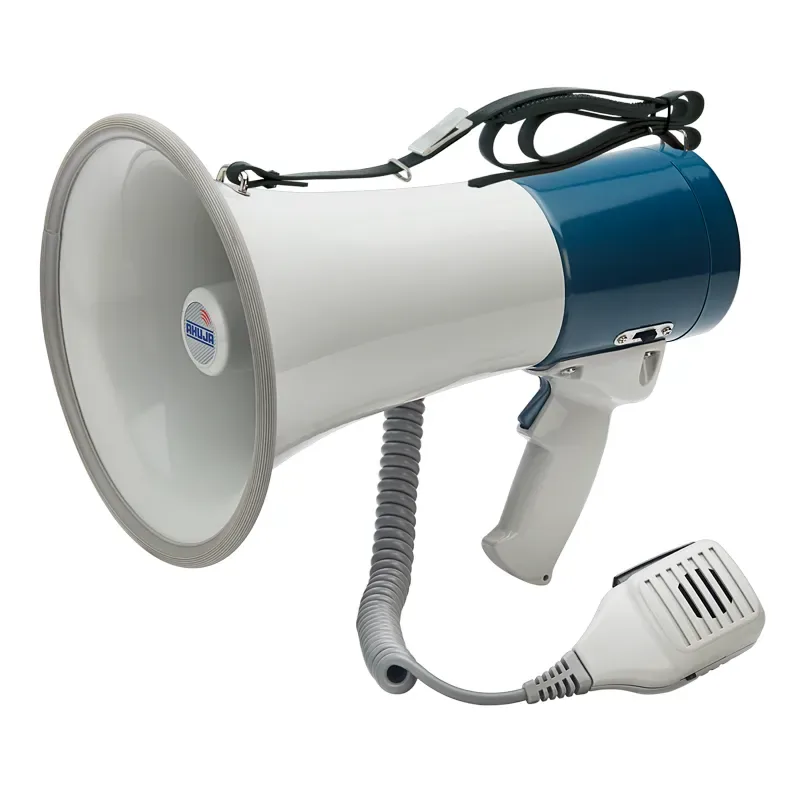

The Ahuja AM-22HSD is a 28W Class-D PA megaphone for handheld or shoulder-sling use.
Features
- UM-3 (AA) Pencil Cells & Car Battery (12-14V DC) operation.
- Class-D Amplifier provides extremely high efficiency of power consumption resulting in extended battery life.
- Uses larger voice coil and bigger magnet assembly for higher SPL.
- All ABS body, sturdy yet lightweight.
- Built-in Siren.
- Clear sound, long range & efficient.
- Microphone with Volume Control & Press-to-Talk Switch.
- Can be used as hand held as well as on shoulder.
- Recommended to use AA Alkaline Cell for extended life and better performance.
Specifications, Q&A and videos
| Power Output | 22W Rated / 28W Max. |
|---|---|
| Voice Range | Approx. 400m (Siren 500m) In Quiet Surroundings |
| Power Source | 10 × AA Pencil Cells / Car Battery 12-14V DC / 11.1V Li-ion battery optional |
| Microphone | Unidirectional |
| Inputs | Dedicated Microphone |
| Dimensions | Horn Ø220mm, L370 mm |
| Weight | 1.90kg (without cells) |
The AM-22HSD is an Ahuja PA megaphone in the AM Megaphones rated 28 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
UM-3 (AA) Pencil Cells & Car Battery (12-14V DC) operation; Class-D Amplifier provides extremely high efficiency of power consumption resulting in extended battery life; Uses larger voice coil and bigger magnet assembly for higher SPL; All ABS body, sturdy yet lightweight; Built-in Siren; Clear sound, long range & efficient.
The AM-22HSD voice range is Approx. 400m (Siren 500m) In Quiet Surroundings.
The AM-22HSD power source is 10 × AA Pencil Cells / Car Battery 12-14V DC / 11.1V Li-ion battery optional.
The AM-22HSD microphone is Unidirectional.
The AM-22HSD inputs is Dedicated Microphone.
The AM-22HSD dimensions is Horn Ø220mm, L370 mm.
