SM Professional
Fire 90A
- Power
- 1200 WATTS
- Series
- Fire Series
- Category
- Speakers
- Category
- Line Arrays

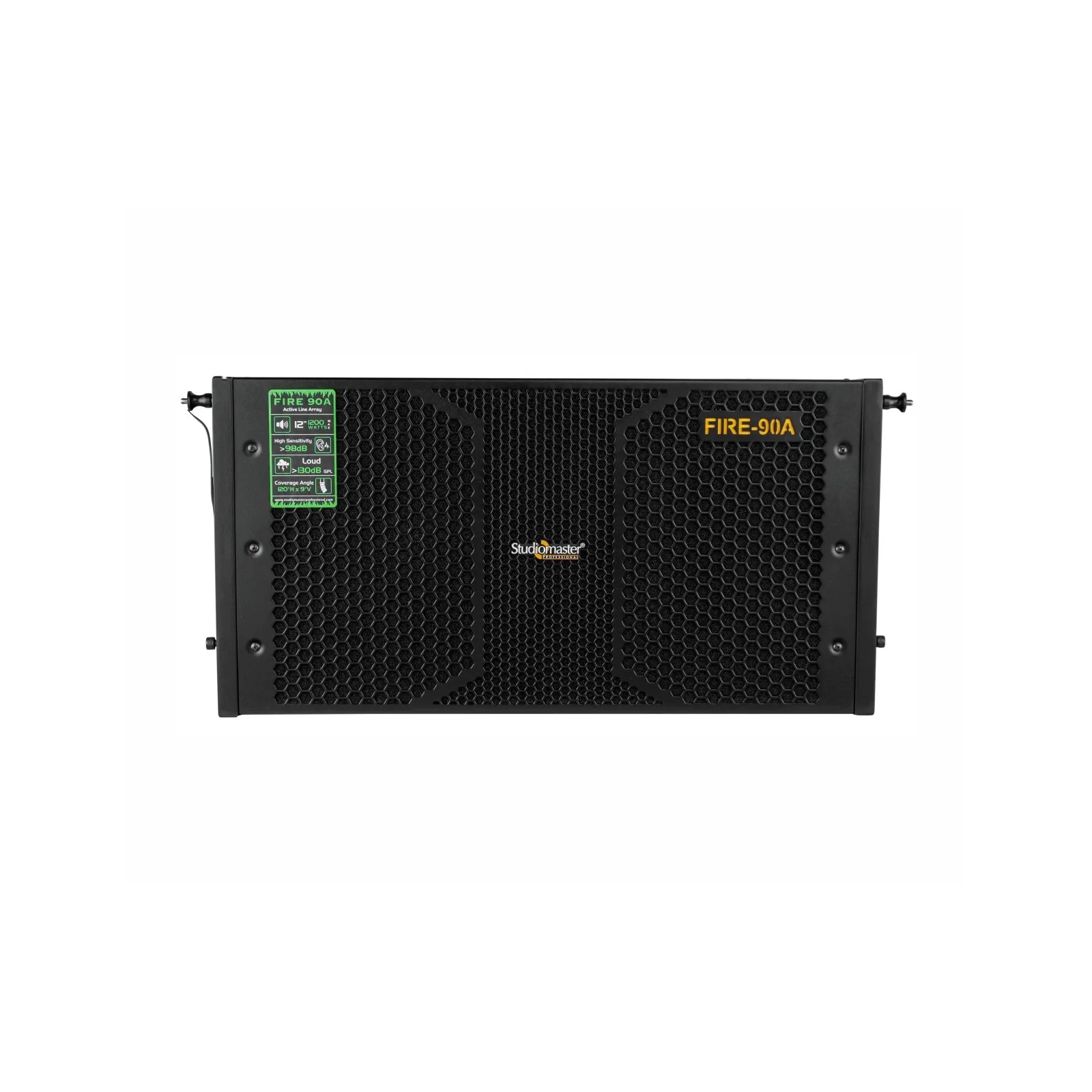

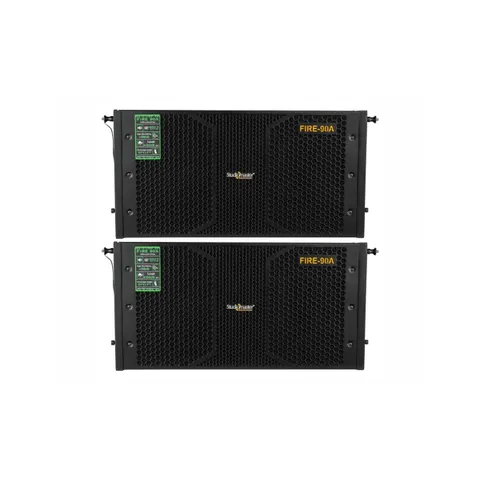

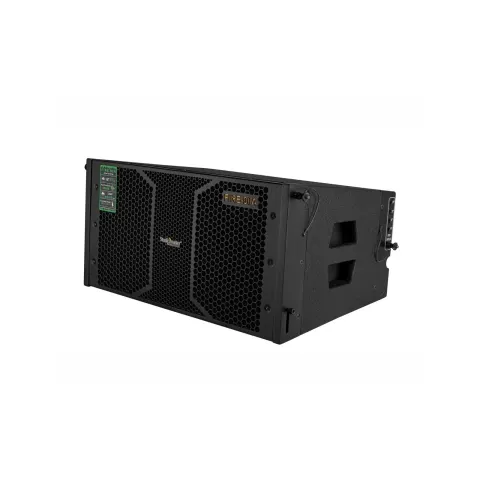

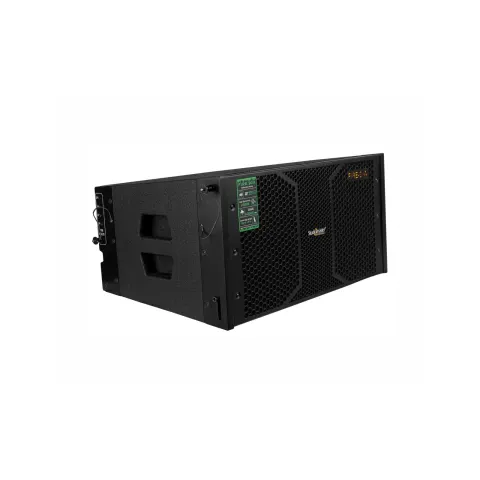

The SM Professional Fire 90A is a high performance 600W (RMS) / 1200W (Peak) 2-way bi-amplified active line array system.
Integrating 12” LF driver, class D amplification, easy DSP presets, app control and more, the system is geared to deliver high SPL and a focused dispersion area.
Features
- High performance 2-way bi-amplified active line array system.
- Driven by an efficient class D amplifier.
- Integrates powerful LF & HF drivers to deliver high SPL and a wide dispersion area.
- Easy DSP sound presets: Standard / Long Throw / Short Throw / Monitor.
- CAT5e network connectivity for advanced PC-based DSP editing and speaker management.
- Built-in soft clip limiter for speaker protection.
- Constant curvature waveguide for unprecedented array coherence and dispersion.
- Coverage Pattern: 120° (Horizontal) x 9° (Vertical) for uniform acoustic coverage.

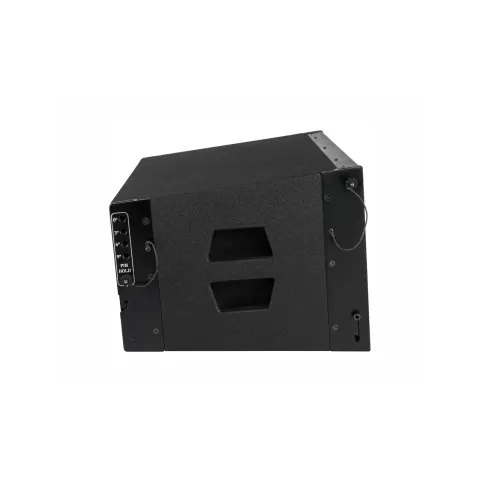

- Variable splay angles (0°, 3°, 6°, and 9°) for versatile array configurations.
- Integrated locking system quick, safe and secure installation.

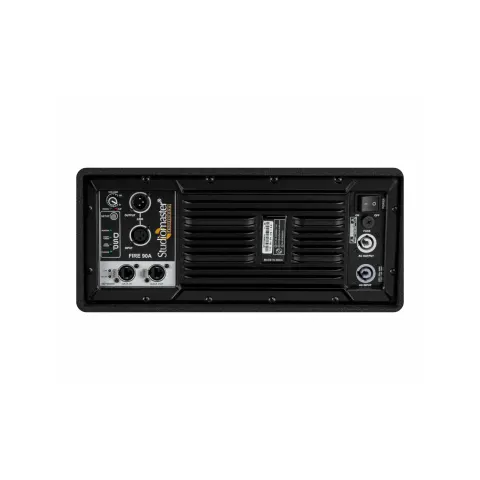

- XLR input connector and link out for linking additional speakers.
- Powercon connectors for AC input and link out power supply.
- Acoustically-tuned and durable wooden cabinet enclosure.
- Attractive speaker grille and anti-scratch textured paint finish for stunning visual aesthetics.
- Dual pole mounts for multiple throw options; straight and angled (up-firing).
- Robust fly bar kit for quick rigging and flying (available separately).
- System Consists of: ● Fire 90A Line array module ● Fly bar
Specifications, Q&A and videos
| LF Size | 1 x 12" |
|---|---|
| Product Type | Line Array |
| Amplifier Type | Class D |
| Power Output (RMS / Peak) Watts | 600 /1200 |
| Frequency Response (Hz) | 40-20000 |
| System Maximum SPL (dB) | 128 |
| LF Driver Size | 1 x 12” LF |
| HF Driver Size | 1 x 2” exit |
| Horizontal Coverage Angle | 120° |
| Vertical Coverage Angle | 9° |
| Crossover Frequency (Hz) | 2000 |
| Input Connectors | Balanced XLR |
| Output Connector (Line output) | Balanced XLR |
| Power Supply | 240V, 50Hz |
| Dimensions (W x D x H) mm | 665 x 452 x 340 |
| Net Weight Fire 90A (Kg) | 36 |
| Net Weight Fire 90A Fly Bar (Kg) | 17 |
The Fire 90A is an SM Professional Passive loudspeakers in paint-finish wooden cabinets for live, touring, DJ, and install in the Fire Series. The SM Professional Fire 90A is a high performance 600W (RMS) / 1200W (Peak) 2-way bi-amplified active line array system. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High performance 2-way bi-amplified active line array system; Driven by an efficient class D amplifier; Integrates powerful LF & HF drivers to deliver high SPL and a wide dispersion area; Easy DSP sound presets: Standard / Long Throw / Short Throw / Monitor; CAT5e network connectivity for advanced PC-based DSP editing and speaker management; Built-in soft clip limiter for speaker protection.
The Fire 90A lf size is 1 x 12".
The Fire 90A product type is Line Array.
The Fire 90A amplifier type is Class D.
The Fire 90A power output (rms / peak) watts is 600 /1200.
The Fire 90A frequency response (hz) is 40-20000.
