SM Professional
Fire 90
- Power
- 1200 WATTS
- Series
- Fire Series
- Category
- Speakers
- Category
- Line Arrays

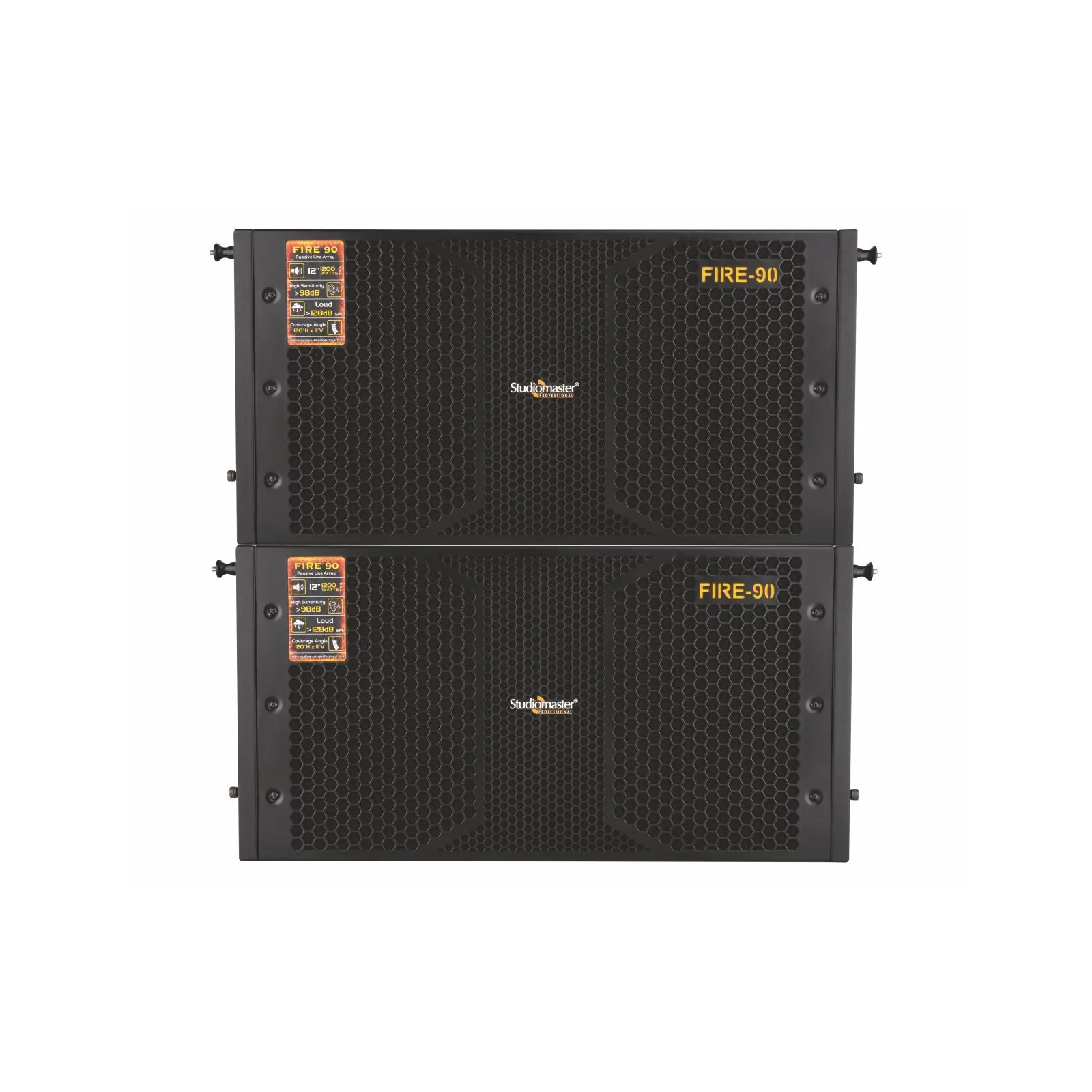

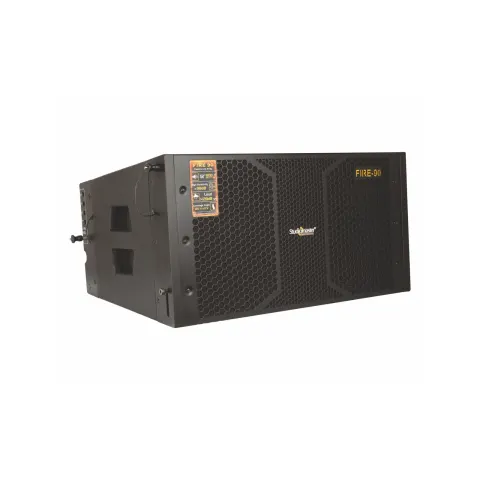

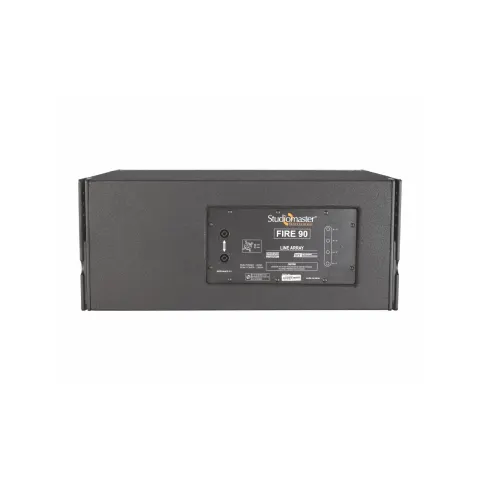

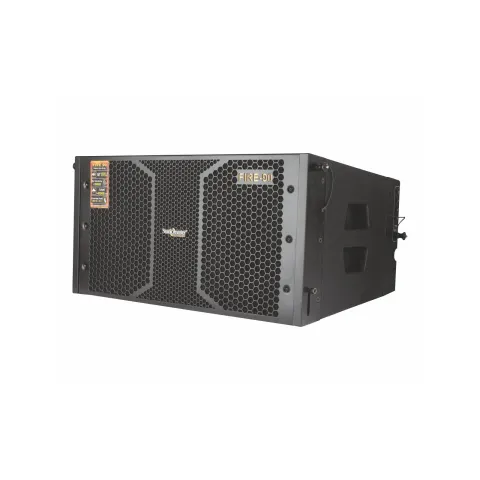

The SM Professional Fire 90 is a high-performance single 12” 1200W (Peak) / 600W (RMS) passive line array system.
Integrating custom-engineered transducers, carefully-selected components and leveraging SM Professional’s years of technical acumen, the Fire 90 is geared to deliver high-fidelity sonic reproduction and uniform acoustic coverage in live, touring, DJ, and install applications.
Features
- Single 12" LF mid-bass driver with 4" voice coil for detailed mid clarity
- 2" exit HF compression driver with 2.84 voice coil for clear high frequency response
- Constant curvature waveguide for unprecedented array coherence and dispersion
- State-of-the-art crossover design for enhanced frequency response
- Exceptional sound quality, powerful response and long throw
- Coverage Pattern: 120° (Horizontal) x 9° (Vertical) for uniform acoustic coverage
- Variable splay angles (0°, 3°, 6°, and 9°) for versatile array configurations
- Integrated locking system quick, safe and secure installation
- Acoustically-tuned and durable wooden cabinet enclosure
- Attractive speaker grille and anti-scratch textured paint finish for stunning visual aesthetics
- Dual pole mounts for multiple throw options; straight and angled (up-firing)
- Robust fly bar kit for quick rigging and flying (available separately)
Specifications, Q&A and videos
| Series | Fire Series |
|---|---|
| Product Type | Line Array |
| Power Output (RMS / Peak) Watts | 600 /1200 |
| Frequency Response (Hz) | 40-20000 |
| System Maximum SPL | 128 |
| Sensitivity (1w @ 1m) | 98dB LF / 100dB HF |
| LF Driver Size | 1 x 12” LF, 4" VC |
| HF Driver Size | 1 x 2” exit, 3" VC |
| Nominal Impedance (Ω) | 8 |
| Horizontal Coverage Angle | 120° |
| Vertical Coverage Angle | 9° |
| Crossover Frequency (Hz) | 2000 |
| Input Connectors | 2 x Speakon |
| Variable splay angles | 0°, 3°, 6°, and 9° |
| Dimension (W x D X H) mm | 675 x 450 x 350 |
| Net Weight Fire 90 (Kg) | 36 |
| Net Weight Fire 90 Fly Bar (Kg) | 17 |
The Fire 90 is an SM Professional Passive loudspeakers in paint-finish wooden cabinets for live, touring, DJ, and install in the Fire Series. The SM Professional Fire 90 is a high-performance single 12” 1200W (Peak) / 600W (RMS) passive line array system. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Single 12" LF mid-bass driver with 4" voice coil for detailed mid clarity; 2" exit HF compression driver with 2.84 voice coil for clear high frequency response; Constant curvature waveguide for unprecedented array coherence and dispersion; State-of-the-art crossover design for enhanced frequency response; Exceptional sound quality, powerful response and long throw; Coverage Pattern: 120° (Horizontal) x 9° (Vertical) for uniform acoustic coverage.
The Fire 90 product type is Line Array.
The Fire 90 power output (rms / peak) watts is 600 /1200.
The Fire 90 frequency response (hz) is 40-20000.
The Fire 90 system maximum spl is 128.
The Fire 90 sensitivity (1w @ 1m) is 98dB LF / 100dB HF.
