SM Professional

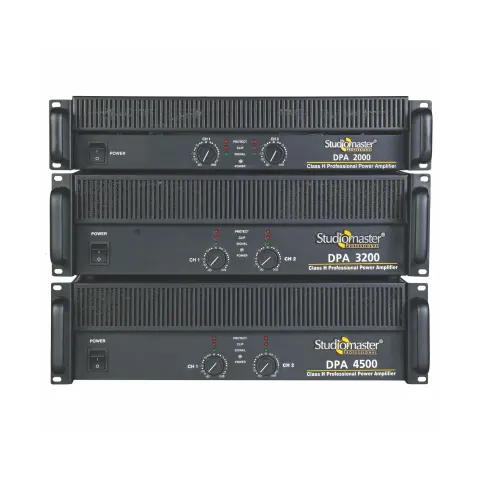

SM Professional DPA Series power amplifier represents state-of-the-art professional quality & performance at an affordable price.
Perfectly suited for a wide range of sound reinforcement applications including Professional touring, performing musicians, & mobile entertainers.
| Series | DPA Series |
|---|---|
| 2 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 1040 W |
| 2 Ω (EIA), 1kHz , 1%THD | 2 x 2250 W |
| 4 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 780 W |
| 4 Ω (EIA), 1kHz , 1%THD | 2 x 1380 W |
| 8 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 520 W |
| 8 Ω (EIA), 1kHz , 1%THD | 2 x 755 W |
| 4 Ω (True RMS),20Hz-20kHz,1% THD_ | 2080 W |
| 4 Ω (EIA), 1kHz , 1%THD_ | 4500 W |
| 8 Ω (T rue RMS),20Hz-20kHz,1% THD | 1560 W |
| 8 Ω (EIA), 1kHz , 1%THD_ | 2760 W |
| Damping factor (8 Ω) | > 200 :1 |
| Frequency Response | 20Hz - 20kHz (±0.5dB) |
| Protection Devices | DC, Short Circuit, Over heat, Soft-Start, Clip Limit, Over load |
| Input Connector (Per CH.) | XLR |
| Output Connector (Per CH.) | Speakon & Binding post |
| Dimensions (WxDxH)mm | 483 x 455 x 88 (2U) |
| Net Weight (Kgs.) | 28 |

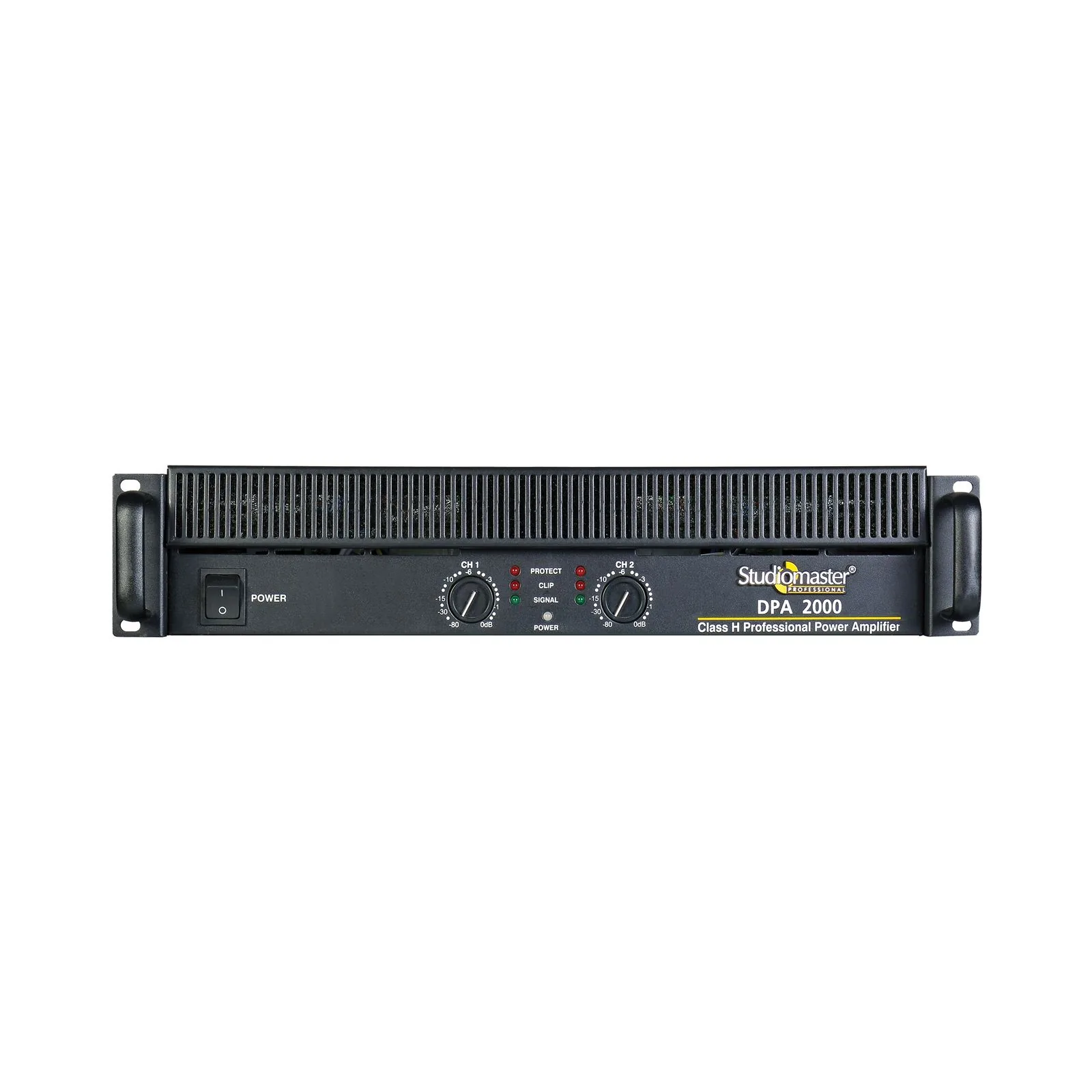

The DPA 2000 is an SM Professional PA product in the PA Amplifiers. SM Professional DPA Series power amplifier represents state-of-the-art professional quality & performance at an affordable price. Available from Mansukhlal Sales Corp, an authorized dealer.
Professional high-power amplifiers; Balanced / unbalanced inputs signal through parallel XLR connector in both channels; Low THD & high damping factor for excellent sound quality; Fast recovery design for lower distortion if clipping occurs; Selectable slide switch for stereo, parallel & bridge mono amp modes; Selectable sensitivity slide switch for ( 0.775V , 1V or 1.4V).
The DPA 2000 2 ω (true rms),20hz-20khz,1% thd is 2 x 1040 W.
The DPA 2000 2 ω (eia), 1khz , 1%thd is 2 x 2250 W.
The DPA 2000 4 ω (true rms),20hz-20khz,1% thd is 2 x 780 W.
The DPA 2000 4 ω (eia), 1khz , 1%thd is 2 x 1380 W.
The DPA 2000 8 ω (true rms),20hz-20khz,1% thd is 2 x 520 W.
