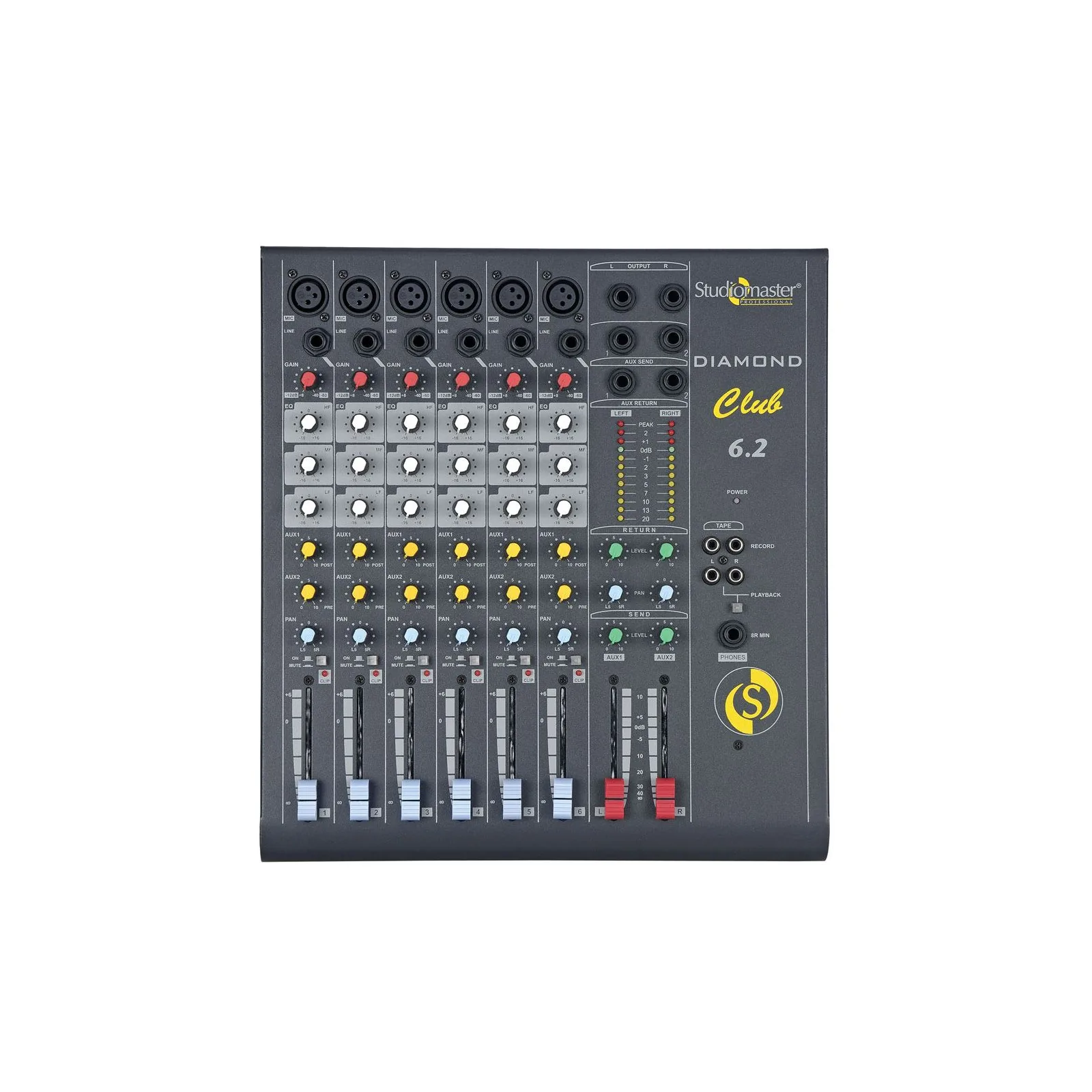

SM Professional
DC 6.2
- Series
- Diamond Club Series
- Category
- Mixers
- Category
- Analog Mixers
The best selling & the most trusted mixing consoles in India.
These mixers are built to match international standards, they are ideal for professionals as well as amateurs.
Features
- 6 Mic/Line
- Balanced Mic/Line Inputs
- Gain control with 3 Band EQ per channel.
- 2 Aux Sends/ Returns.
- 1 pre & 1 post aux sends rotary control per channel.
- L/R Pan Pot, Illuminated Mute Switch & Clip LED per Channel.
- 12 segments L/R LED meter for Master Level.
- Stereo Tape in/tape out, Headphone out.
- Blue Power on LED
- ¼ TRS, L/R Main Output.
- Elegant Shape – Curve front
- Stylish Grey panel
Specifications, Q&A and videos
| Series | Diamond Club Series |
|---|---|
| Nominal Gain (Mic/Line) | 60dB/40dB |
| Max Gain (Mic/Line) | 76dB/56dB |
| Mic (Gain Min/Gain Max) | -12dBu / -60dBu |
| Line (Gain Min /Gain Max) | +8dBu / -40dBu |
| Mic Input | Typically 5K Ω balanced |
| Line input | 20K Ω (Balanced) /10K Ω (Unbalanced) |
| Main Output level (Nominal / Max) | 0dBu (0.775V RMS) / +17dBu (5.5V RMS) |
| Main Output Impedance | <50 Ω |
| Frequency Response | 25Hz to 19KHz (+0/-1 dB) |
| Total Harmonic Distortion | Better than 0.8% |
| Signal to Noise Ratio | -76 dB |
| Clip indication | 4 dB prior to true clip |
| Equalisation (Treble/Mid/Bass) | ±16dB @ 10KHz/2.5KHz/100 Hz |
| Power Supply | 150V~250V AC/50Hz |
| Dimensions (W x D x H in mm) | 335x376x89 |
| Net Weight (Kgs.) | 5.5 |
The DC 6.2 is an SM Professional Trusted multi-purpose mixing consoles (DC line) in the Diamond Club Series. The best selling & the most trusted mixing consoles in India. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
6 Mic/Line; Balanced Mic/Line Inputs; Gain control with 3 Band EQ per channel; 2 Aux Sends/ Returns; 1 pre & 1 post aux sends rotary control per channel; L/R Pan Pot, Illuminated Mute Switch & Clip LED per Channel.
The DC 6.2 nominal gain (mic/line) is 60dB/40dB.
The DC 6.2 max gain (mic/line) is 76dB/56dB.
The DC 6.2 mic (gain min/gain max) is -12dBu / -60dBu.
The DC 6.2 line (gain min /gain max) is +8dBu / -40dBu.
The DC 6.2 mic input is Typically 5K Ω balanced.
