SM Professional

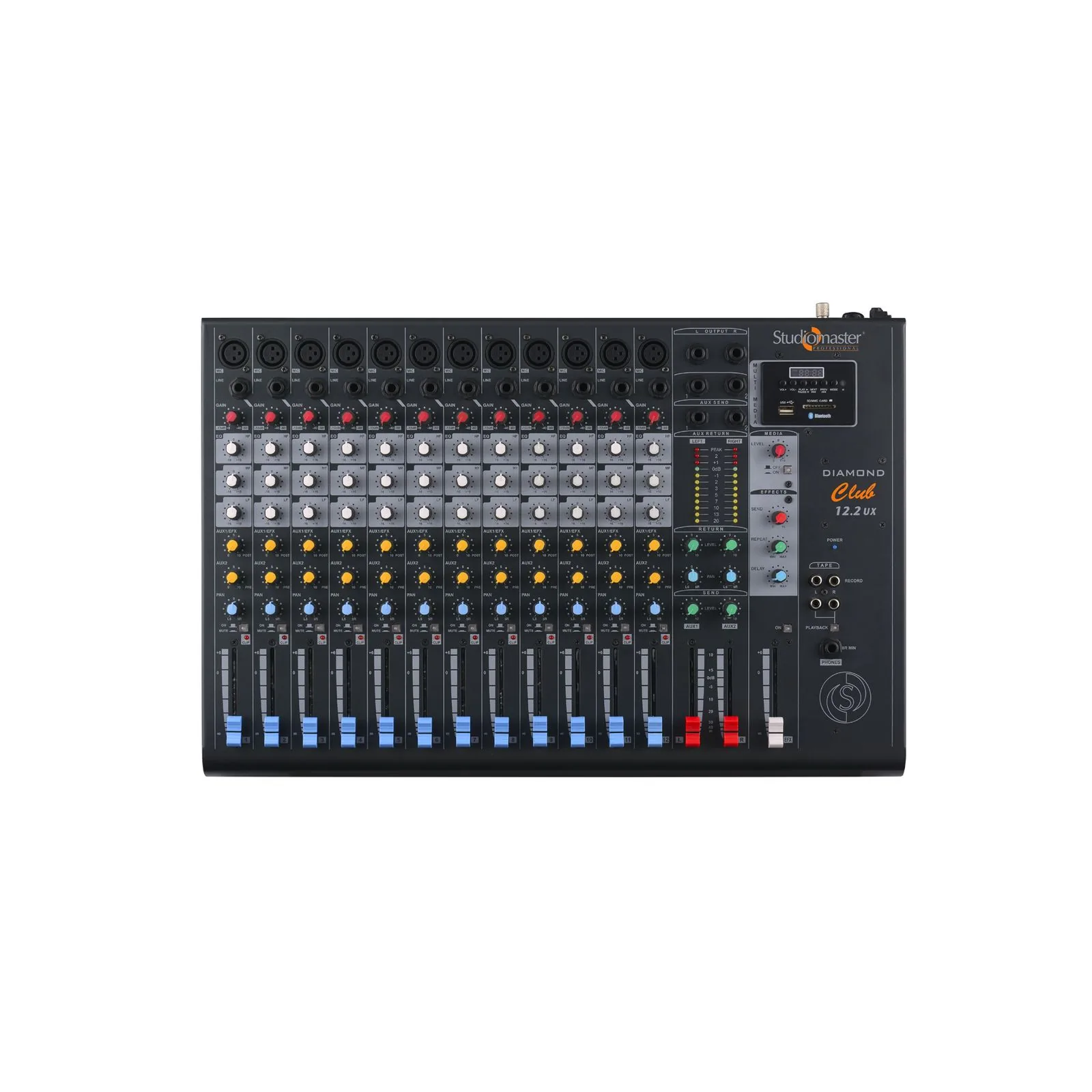

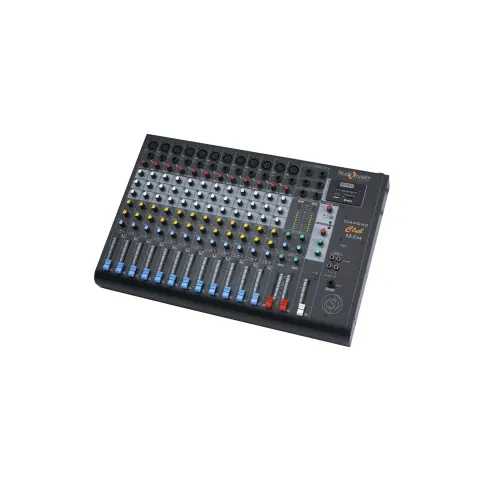

DC 12.2UX
- Channels
- 12 Channels
- Series
- Diamond Club Series
- Category
- Mixers
- Category
- Analog Mixers
The DC 12.2UX is part of the SM Professional Diamond Club Series – one of the best-selling and the most trusted mixing consoles in India.
The 12 channel mixer features high-quality delay EFX onboard, USB/SD card MP3 media player with transport control and IR remote control, and built-in Bluetooth connectivity for wireless streaming.
Features
- 12 mic / line + USB / SD card input for MP3 music playback with IR remote control.
- Built-in Bluetooth wireless streaming from smartphones, tablets and laptops.
- High-quality on-board delay EFX with time and repeat control.
- 2 Aux sends / returns.
- 1 pre & post aux sends rotary control per channel.
- Balanced mic / line input.
- Gain control with 3 band EQ per channel.
- L/R pan pot, illuminated mute switch & clip LED per channel.
- Stereo tape in / tape out and ¼” headphone out.
- Balanced ¼” TRS L/R master output.
- 12 segments L/R LED meter for master level output.
Specifications, Q&A and videos
| Series | Diamond Club Series |
|---|---|
| Nominal Gain (Mic/Line) | 60dB/40dB |
| Max Gain (Mic/Line) | 76dB/56dB |
| Mic (Gain Min/Gain Max) | -12dBu / -60dBu |
| Line (Gain Min /Gain Max) | +8dBu / -40dBu |
| Mic Input | Typically 5K Ω balanced |
| Line input | 20K Ω (Balanced) /10K Ω (Unbalanced) |
| Main Output level (Nominal / Max) | 0dBu (0.775V RMS) / +17dBu (5.5V RMS) |
| Main Output Impedance | <50 Ω |
| Frequency Response | 25Hz to 19KHz (+0/-1 dB) |
| Total Harmonic Distortion | Better than 0.8% |
| Signal to Noise Ratio | -76 dB |
| Clip indication | 4 dB prior to true clip |
| Equalisation (Treble/Mid/Bass) | ±16dB @ 10KHz/2.5KHz/100 Hz |
| EFX & USB | USB+SD+MMC+EFX |
| Power Supply | 150V~250V AC/50Hz |
| Dimensions (W x D x H in mm) | 555x376x89 |
| Net Weight (Kgs.) | 8.5 |
The DC 12.2UX is an SM Professional Trusted multi-purpose mixing consoles (DC line) in the Diamond Club Series. The DC 12.2UX is part of the SM Professional Diamond Club Series – one of the best-selling and the most trusted mixing consoles in India. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
12 mic / line + USB / SD card input for MP3 music playback with IR remote control; Built-in Bluetooth wireless streaming from smartphones, tablets and laptops; High-quality on-board delay EFX with time and repeat control; 2 Aux sends / returns; 1 pre & post aux sends rotary control per channel; Balanced mic / line input.
The DC 12.2UX nominal gain (mic/line) is 60dB/40dB.
The DC 12.2UX max gain (mic/line) is 76dB/56dB.
The DC 12.2UX mic (gain min/gain max) is -12dBu / -60dBu.
The DC 12.2UX line (gain min /gain max) is +8dBu / -40dBu.
The DC 12.2UX mic input is Typically 5K Ω balanced.
