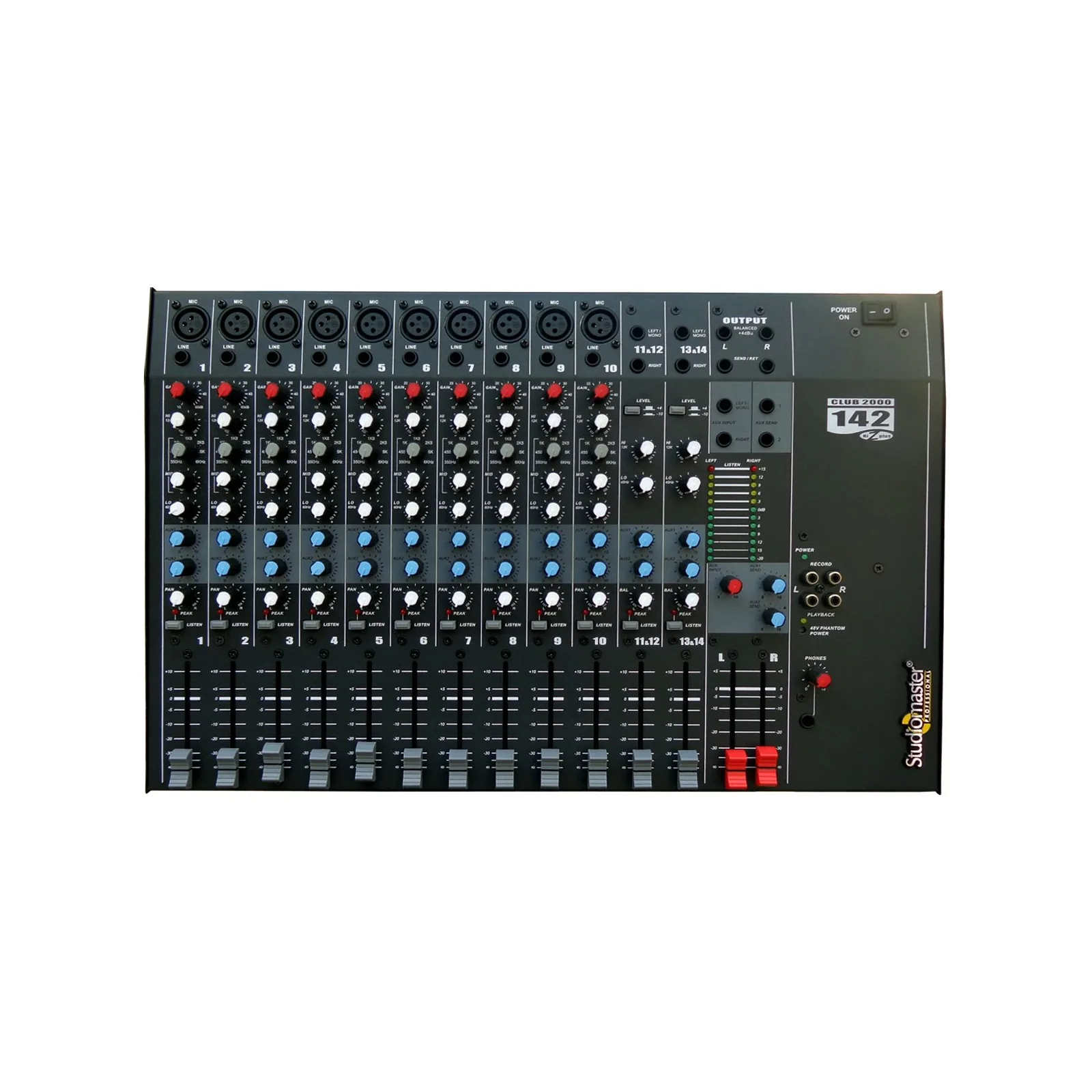

SM Professional
C 142
- Series
- C Series Mixers
- Category
- Mixers
- Category
- Analog Mixers
The Club 2000 series is designed to offer truly relevant features with simplicity, making the series suitable for a wide range of applications.
Features
- 10 Mic / Line + 2 Stereo Line Inputs.
- 3-band EQ with mid sweep on mono channel, 2- band on stereo.
- 2 Aux send / 1 stereo return with Rotary controls perchannel.
- Globally switched +48V phantom power switch.
- 5-band graphic EQ on board (Available only on the C142EFX).
- 12 Segments L/R Led Meter for master level.
- Stereo playback input / Rec out RCA jack.
- Balanced 1/4" TRS Jack L/R main Output
Specifications, Q&A and videos
| Series | Club 2000 Series |
|---|---|
| Nominal Gain (Mic/Line/Stereo Line) | 60dB/40dB/12dB |
| Max Gain (Mic/Line/Stereo Line) | 75dB/55dB/27dB |
| Mic (Gain Min/Gain Max) | -10dBu / -60dBu |
| Line (Gain Min /Gain Max) | +10dBu / -40dBu |
| Stereo (Gain Min /Gain Max) | 0dBu/-12dBu |
| Mic Input | Typically 2K Ω balanced |
| Line input | 20K Ω (Balanced) /10K Ω (Unbalanced) |
| Stereo Line | 15K Ω (Balanced) /10K Ω (Unbalanced) |
| Main Output level (Nominal / Max) | 0dBu (0.775V RMS) / +22dBu (10V RMS) |
| Main Output Impedance | <75 Ω |
| Frequency Response | 20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion | <0.004% |
| Signal to Noise Ratio | -75 dB |
| Clip indication | 5 dB prior to true clip |
| Mono Mic [Treble/Mid(with sweep)/Bass] | ±15dB @ 12KHz/350Hz-6KHz/60 Hz |
| Stereo Mic/Line (Treble/Bass) | ±15dB @ 12KHz/45 Hz |
| Phantom Supply | +48V |
| Power Supply | 150V~250V AC/50Hz |
| Dimensions (W x D x H in mm) | 492 x 322 x 87 |
| Net Weight (Kgs.) | 5.5 |
The C 142 is an SM Professional PA product in the C Series Mixers. The Club 2000 series is designed to offer truly relevant features with simplicity, making the series suitable for a wide range of applications. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
10 Mic / Line + 2 Stereo Line Inputs; 3-band EQ with mid sweep on mono channel, 2- band on stereo; 2 Aux send / 1 stereo return with Rotary controls perchannel; Globally switched +48V phantom power switch; 5-band graphic EQ on board (Available only on the C142EFX); 12 Segments L/R Led Meter for master level.
The C 142 nominal gain (mic/line/stereo line) is 60dB/40dB/12dB.
The C 142 max gain (mic/line/stereo line) is 75dB/55dB/27dB.
The C 142 mic (gain min/gain max) is -10dBu / -60dBu.
The C 142 line (gain min /gain max) is +10dBu / -40dBu.
The C 142 stereo (gain min /gain max) is 0dBu/-12dBu.
