ASL-3000R

The ASL-3000R is an Ahuja PA product rated 90 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.

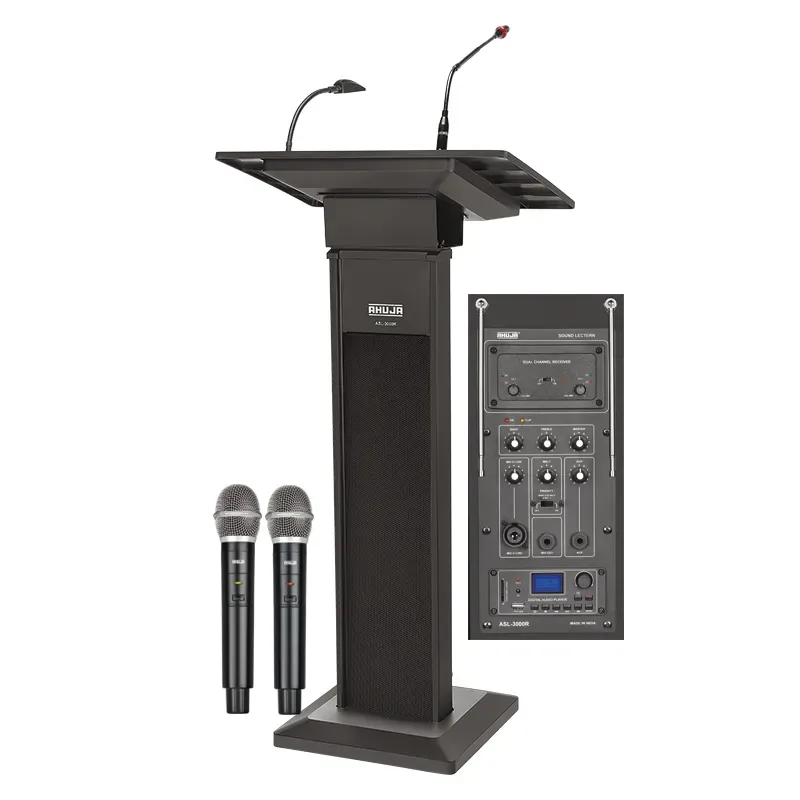

Supplied with a 460mm (18") detachable gooseneck condenser microphone and a reading light, for the podium top; Contains a built-in Dual Channel VHF wireless receiver and two nos. of VHF compatible wireless handheld transmitters in two different fixed frequency; Fitted with 3 nos. of 6.5" (165mm) coated dual cone speakers. Provision given for connecting an external speaker, through a 6.3mm (1/4") phone plug and INT./EXT. selector switch; Facility for connecting an auxiliary source through a 6.3mm (1/4") phone plug; Output connector for MIX OUT, through a 6.3mm (1/4") phone socket, allowing the lectern system to be connected to external amplifiers for further amplification, if required; 2 Handheld wireless transmitter & gooseneck podium microphone have voice priority over all other inputs. This feature can be switched ON or OFF through a slide switch.

The ASL-3000R speaker impedance (external) is 4Ω to 8Ω.

The ASL-3000R input channels sensitivity is Mic-1(Gooseneck Mic): 8mV, Mic-2: 5mV, Line: 100mV, Aux : 200mV.

The ASL-3000R frequency response is 50-16,000Hz.

The ASL-3000R tone control is Bass ±5dB at 100Hz, Treble ±5dB at 10kHz.

The ASL-3000R power supply is AC 220-240V, 50/60Hz.
