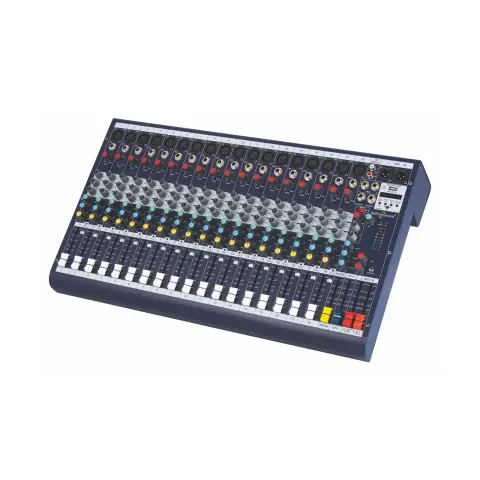

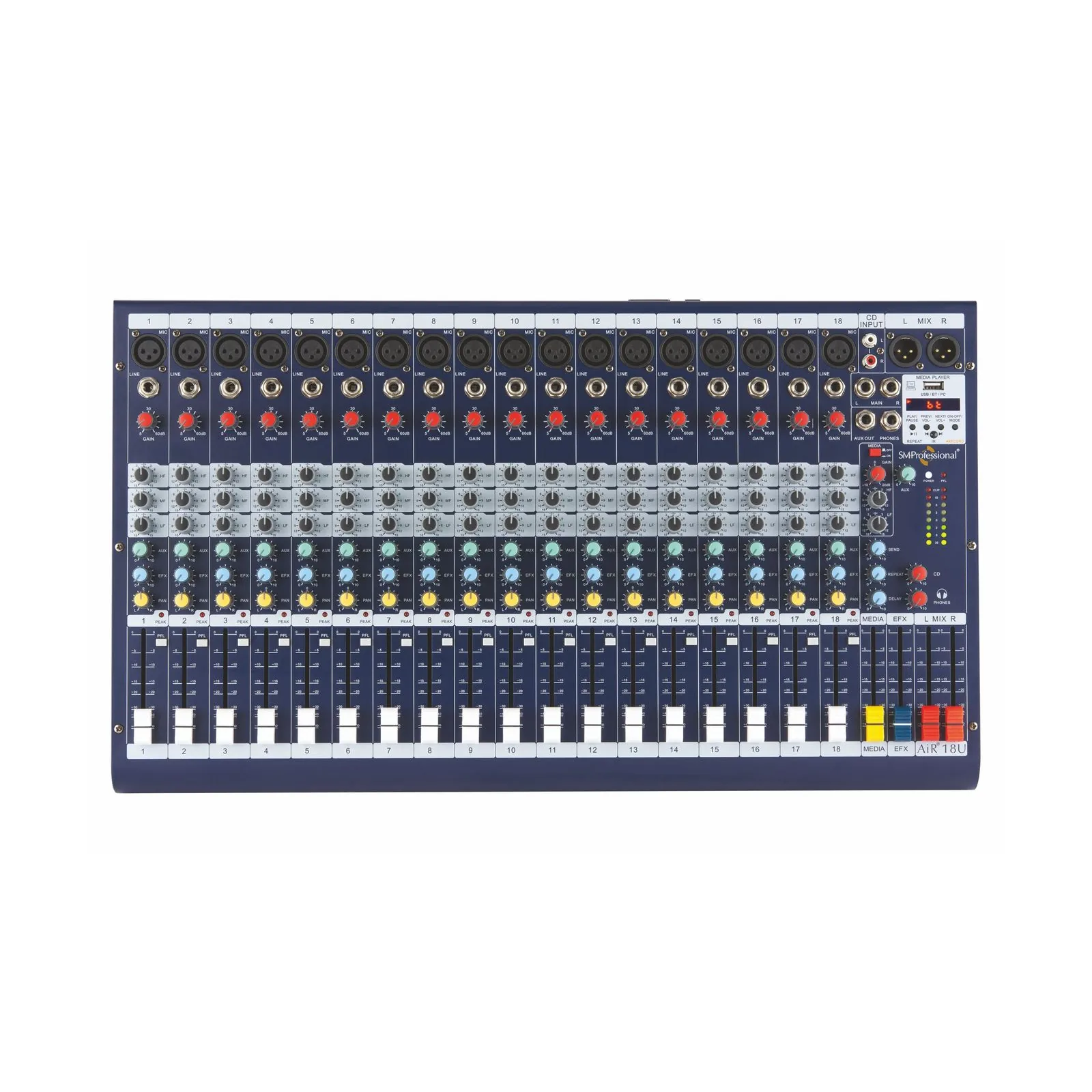

The AiR® 18U is an ultra-compact mixing console for budget-conscious users who refuse to sacrifice sound quality, value, and reliability.
The mixer features high-quality delay EFX onboard, USB audio interface with plug & play connectivity for recording and playback using a PC, and built-in Bluetooth connectivity for wireless streaming.
Features
- 18 Mic / Line with high quality USB MP3 Player, Recorder and Bluetooth on board.
- Delay EFX onboard with send per channel.
- 1 Aux send.
- 3-band EQ per channel.
- PFL (Cue) switch with individual channel control.
- L/R pan pot and clip LED per channel.
- Stereo RCA input with control.
- Headphone output with level control.
- Balanced XLR and 1⁄4” jack master output.
- USB audio interface with plug & play connectivity for recording and playback using a PC.
- LED display to show track information with transport controls.
- 60mm long faders.
Specifications, Q&A and videos
| Series | AiR U Series |
|---|---|
| Number of Inputs | 18 + CD In |
| Gain (Mic/Line) | 60dB/40dB |
| Mic (Gain Min/Gain Max) | -5dBu/ -60dBu |
| Line (Gain Min /Gain Max) | +6dBu / -40dBu |
| Main Output level (Nominal / Max) | +0dBu (0.775V RMS) / +20dBu (7.75V RMS) |
| Frequency Response | 20-20 (+0/-3 dB) |
| Total Harmonic Distortion | < 0.03% |
| Signal to Noise Ratio | -85dB |
| Clip indication | 4 dB prior to true clip |
| Equalisation (Treble/Mid/Bass) | ±15dB @ 12KHz/2.5KHz/80 Hz |
| EFX | Delay with repeat |
| Dimension (W x D X H) mm | 576 x 334 x 107 |
| Net Weight (Kg) | 6.2 |
The AiR 18U is an SM Professional AiR mixers with built-in USB media player in the AiR U Series. The AiR® 18U is an ultra-compact mixing console for budget-conscious users who refuse to sacrifice sound quality, value, and reliability. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
18 Mic / Line with high quality USB MP3 Player, Recorder and Bluetooth on board; Delay EFX onboard with send per channel; 1 Aux send; 3-band EQ per channel; PFL (Cue) switch with individual channel control; L/R pan pot and clip LED per channel.
The AiR 18U number of inputs is 18 + CD In.
The AiR 18U gain (mic/line) is 60dB/40dB.
The AiR 18U mic (gain min/gain max) is -5dBu/ -60dBu.
The AiR 18U line (gain min /gain max) is +6dBu / -40dBu.
The AiR 18U main output level (nominal / max) is +0dBu (0.775V RMS) / +20dBu (7.75V RMS).
