SM Professional
XR 60 H
- Series
- XR Series
- Category
- Microphones
- Category
- Wireless Microphones

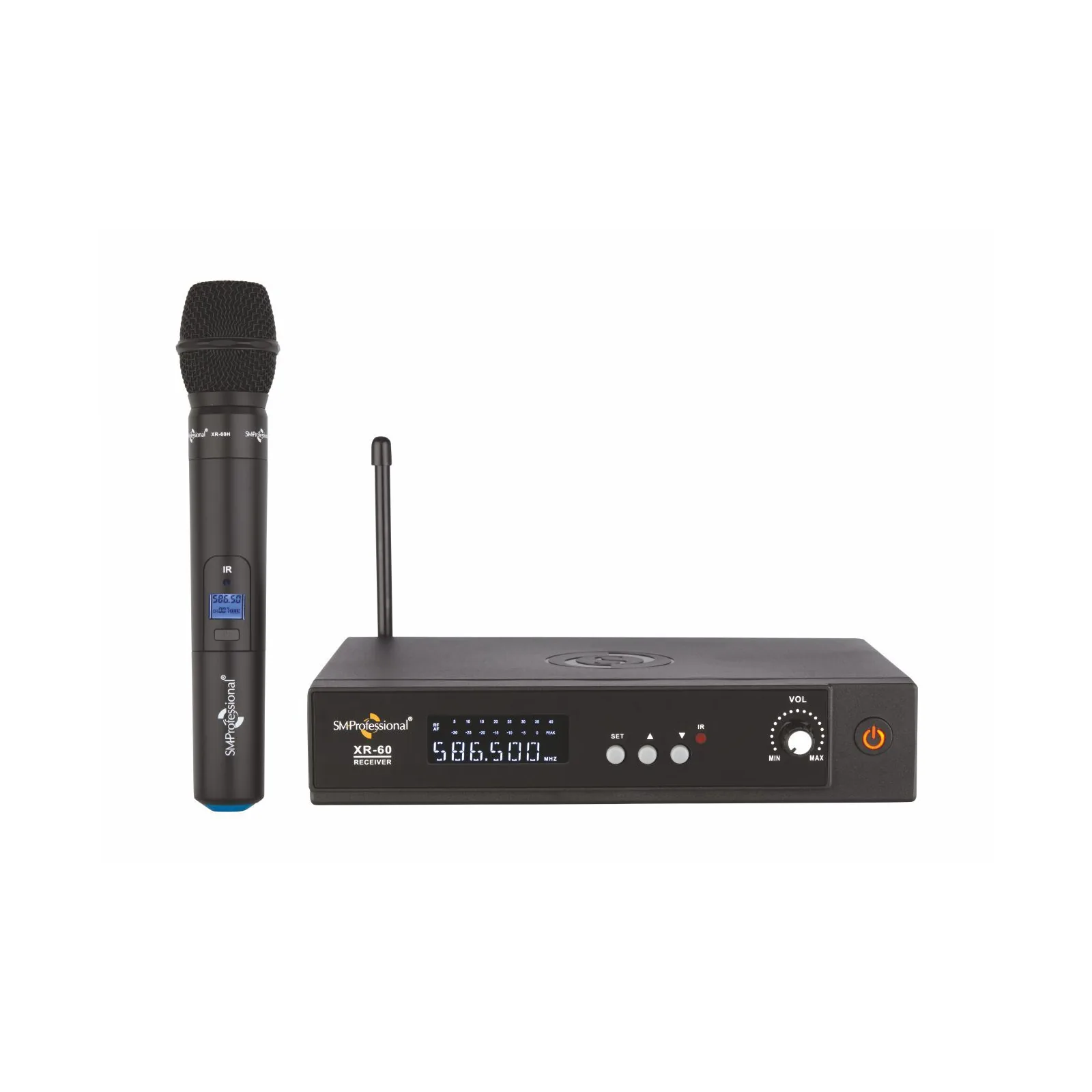

The SM Professional XR 60 H is a high quality single channel UHF wireless microphone system engineered for a variety of touring, mobile PA and installation applications.
Features
- High Quality Single UHF Wireless Microphone System.
- Upto 200 Selectable UHF Channels.
- Easy Setup with Infrared (IR).
- Balanced XLR and Unbalanced ¼” Output with Level Control.
- Display for AF Level, RF Level, Channel and Frequency Indication.
Specifications, Q&A and videos
| Series | XR 60 Series |
|---|---|
| Receiver | Single Channel Non-Diversity |
| Frequency Response | 40Hz –16kHz |
| Polar Pattern (Hand mic) | Cardioid |
| Output | Individual Channel: XLR Mix Out: ¼" Jack |
| Power Req. (Hand mic) | 2 x 1.5V AA |
| Receiver power | 240V AC 50Hz for AC Adaptor Supplied with the set |
The XR 60 H is an SM Professional UHF wireless microphone systems in the XR family in the XR Series. The SM Professional XR 60 H is a high quality single channel UHF wireless microphone system engineered for a variety of touring, mobile PA and installation applications. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High Quality Single UHF Wireless Microphone System; Upto 200 Selectable UHF Channels; Easy Setup with Infrared (IR); Balanced XLR and Unbalanced ¼” Output with Level Control; Display for AF Level, RF Level, Channel and Frequency Indication.
The XR 60 H receiver is Single Channel Non-Diversity.
The XR 60 H frequency response is 40Hz –16kHz.
The XR 60 H polar pattern (hand mic) is Cardioid.
The XR 60 H output is Individual Channel: XLR Mix Out: ¼" Jack.
The XR 60 H power req. (hand mic) is 2 x 1.5V AA.
