SM Professional

VaK 40

Download Datasheet

Series
Vāk 40

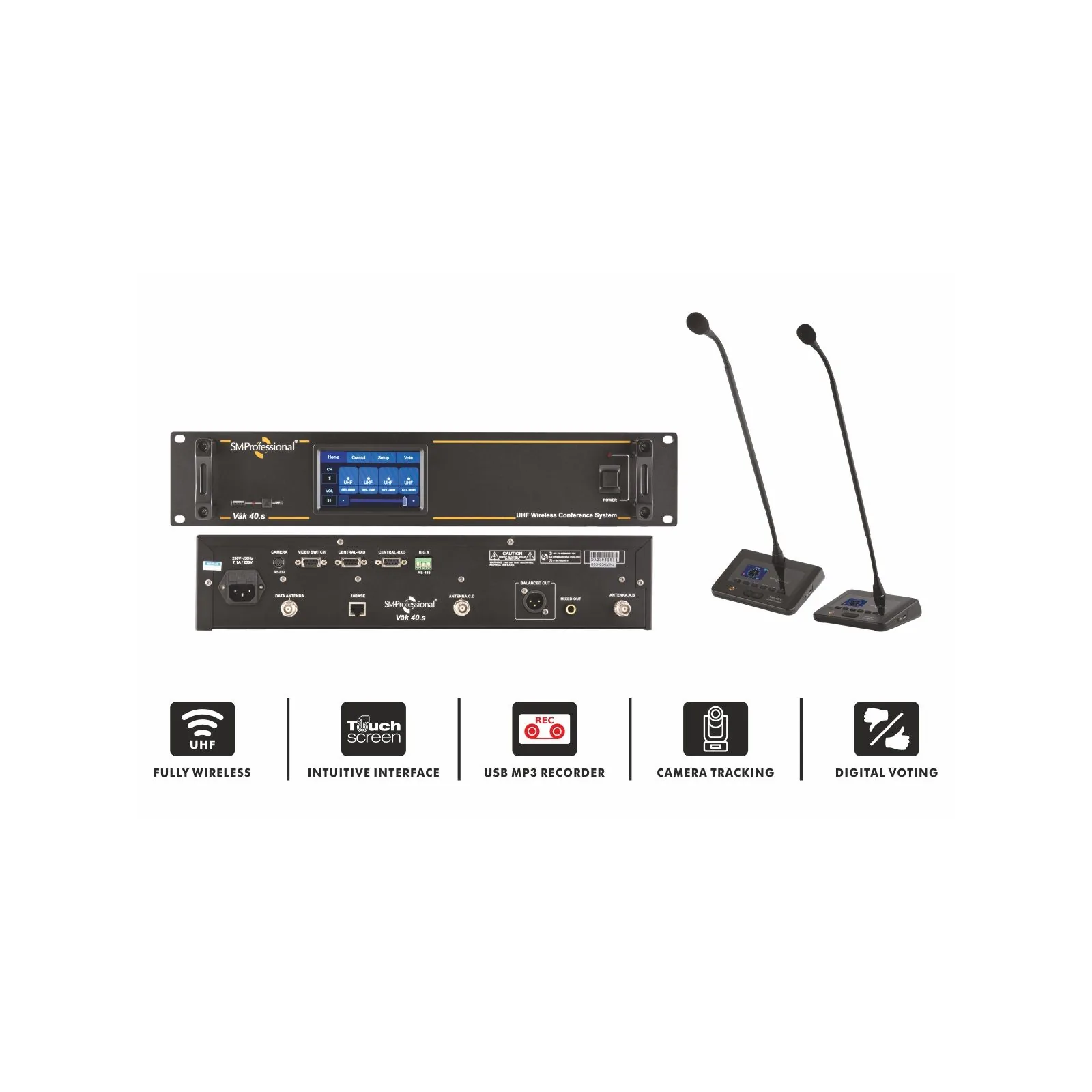

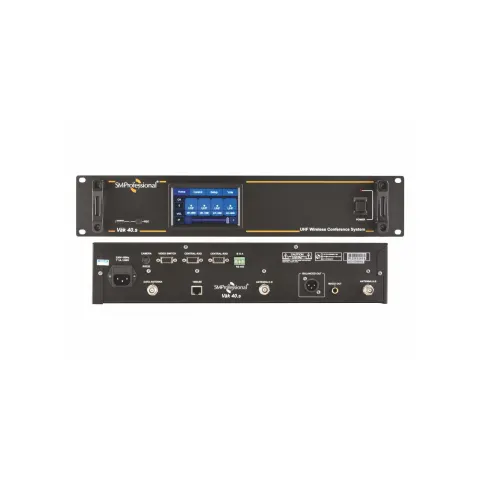

The SM Professional Vak 40 is a fully wireless conferencing system with camera tracking, digital voting, and much more.

Integrating state-of-the-art Digital Signal Processing technologies, premium-grade hardware, unmatched interoperability, and an easy user interface, the Vak 40 series is geared to deliver a powerful, and intuitive wireless conferencing experience.

Features

  • Professional wireless conference system with 4 operating modes, FIFO / LIFO / Limit / Chairman.
  • Highly-flexible and customizable system supporting up to 200 units.
  • 10 secure UHF channels with editable frequencies for flexibility in complex applications.
  • NOM (Number of Open Microphones) – Supports up to 4 active units.
  • Remote microphone ON/OFF and shutdown.
  • Built-in USB MP3 recorder with sequential file saving and storage.
  • Intuitive camera tracking with industry-standard VISCA and PELCO D/P protocol compatibility.
  • RS-232 and RS-485 camera controller interface.
  • Easy sign-in and voting function for streamlined decision making.
  • Automatic interference correction and anti-RF for dropout-free performance.
  • DSP and noise gate for ambient noise suppression and audio clarity.
  • Operating distance of up to 100 ft. (line of sight).
  • User-friendly interface with responsive LCD touch screen.
  • Easy-to-use, no operator required.
  • Quick plug-and-play installation.
  • Ideal for boardrooms, conference rooms, legislative chambers and other large and complex meeting scenarios.

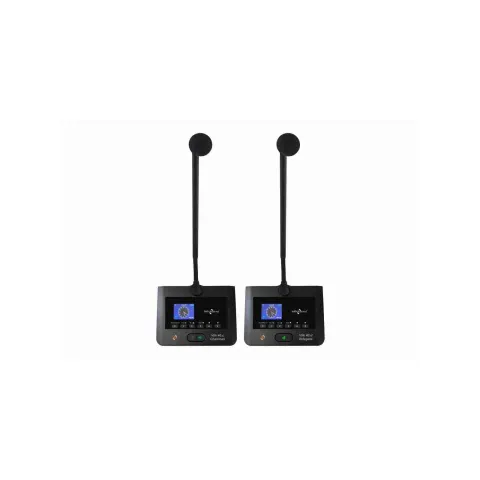

  • Sleek and classy 21” 2-bend gooseneck microphone with base.
  • High-quality condenser microphone capsule for superior voice reproduction.
  • Illuminated ON/OFF talk switch.
  • Clear 2” TFT colour screen displays microphone ON/OFF status, connectivity status, selected channel number, unit ID, battery level, microphone ON time and analogue watch dial.
  • LED ring to indicate ‘Mic Active’ status.

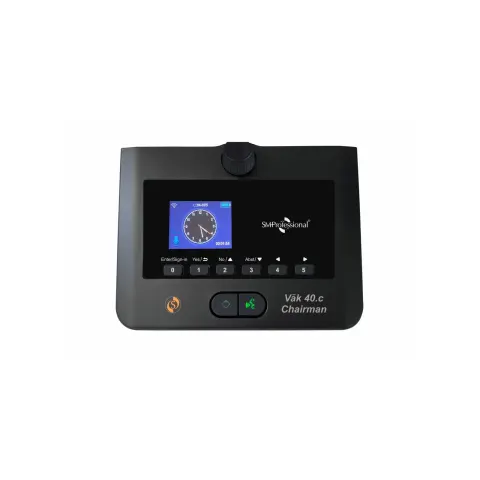

  • Priority switch on the chairman unit to override all delegates during a discussion.
  • Quick access switches to sign-in for voting function, increase/decrease volume and microphone number editing.
  • Power supply options: Removable rechargeable battery or USB type-C connector (cable supplied).
  • Long-lasting 20 hours battery life.
  • Fully wireless for flexibility in fixed and mobile applications.

Specifications, Q&A and videos

VaK 40 technical specifications
SeriesVāK Series
Frequency Range (Hz)45Hz-18kHz ±1dB
Signal to Noise Ratio>60dB
Operation Distance60m
Output ConnectorXLR & 1/4" Jack
Power Supply3.7V DC
Dimension (W x D X H) mm483 x 323 x 90
Net Weight (Kg)0.76
RF Power Output15mW
Priority ButtonOnly on the Vak 40.c Chairman Unit
Bandwidth30MHz
Length of MIC Tube21" / 533mm (2 Bends)
Dimension (W x D x H) mm160 x 138 x 49
