Ahuja
SWX-1010
- Power
- 1000 WATTS
- Series
- SWX Series
- Category
- Speakers
- Category
- Passive Subwoofers

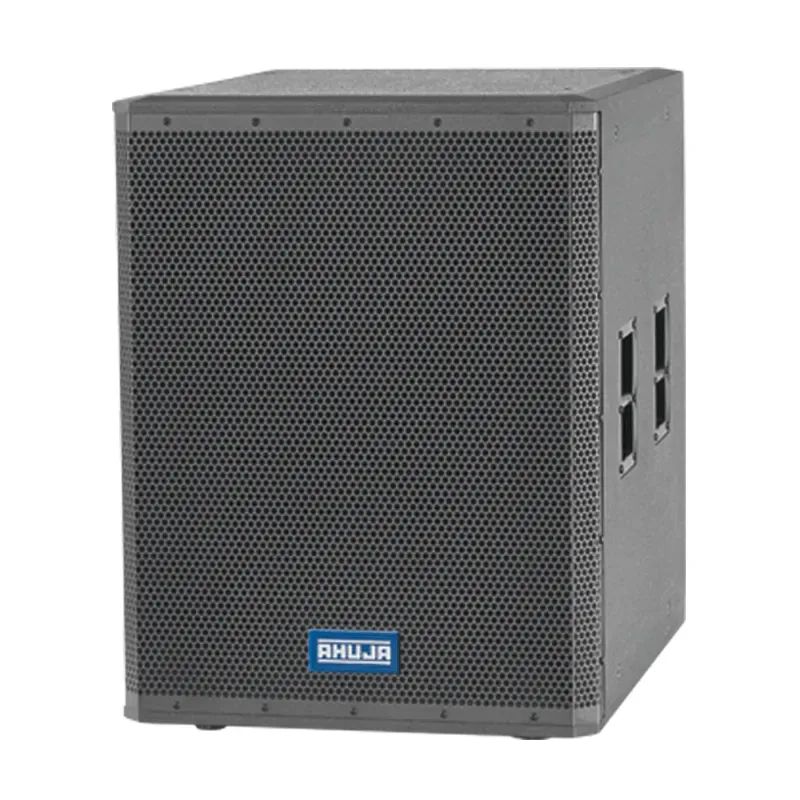

The Ahuja SWX-1010 is a 1000W PA subwoofer system with 18" driver.
SWX-1010 is a compact and powerful super power SUBWOOFER with exceptional distortion-free low frequency response.
Features
- SWX-1010 is a compact and powerful super power SUBWOOFER with exceptional distortion-free low frequency response.
- It is fitted with a 46 cm (18”) LF driver having 12.7 cm (5”) inside/outside voice coil wound on a polyimide fibre glass former.
- The speaker has an aluminium demodulating ring for better heat dissipation and a specially treated cone for water splash resistance.
- The cabinet is rugged and specially braced to withstand intense vibrations.
- The enclosure is made of 18 mm Plywood and fitted with four heavy duty handles, a recessed terminal plate and four indexed feet for ease of stacking.
- The strong metal grille protects the speaker from unavoidable strokes.
Specifications, Q&A and videos
| Power Rating | 1000W RMS/2000W Programme |
|---|---|
| Configuration | One Way |
| Frequency Response | 36-200Hz |
| Low Frequency Speaker | 1 x 457.2 mm (18”) with Ø127 mm (5”) Inside/Outside Wound Voice Coil |
| SPL at (1W/1m) | 99dB |
| Max. Rated SPL | 129dB |
| Nominal Impedance | 8Ω |
| Port | Free Flow Flared |
| Input Connectors | Terminal Strip + Speakon |
| Dimensions | W538 × H710 × D700 mm |
| Weight | 55.20kg |
The SWX-1010 is an Ahuja PA subwoofer system in the SWX Series rated 1000 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
SWX-1010 is a compact and powerful super power SUBWOOFER with exceptional distortion-free low frequency response; It is fitted with a 46 cm (18”) LF driver having 12.7 cm (5”) inside/outside voice coil wound on a polyimide fibre glass former; The speaker has an aluminium demodulating ring for better heat dissipation and a specially treated cone for water splash resistance; The cabinet is rugged and specially braced to withstand intense vibrations; The enclosure is made of 18 mm Plywood and fitted with four heavy duty handles, a recessed terminal plate and four indexed feet for ease of stacking; The strong metal grille protects the speaker from unavoidable strokes.
The SWX-1010 configuration is One Way.
The SWX-1010 frequency response is 36-200Hz.
The SWX-1010 low frequency speaker is 1 x 457.2 mm (18”) with Ø127 mm (5”) Inside/Outside Wound Voice Coil.
The SWX-1010 spl at (1w/1m) is 99dB.
The SWX-1010 max. rated spl is 129dB.
