SM Professional
S 9022
- Power
- 1800 WATTS
- Series
- S Series
- Category
- Speakers
- Category
- Passive Speakers

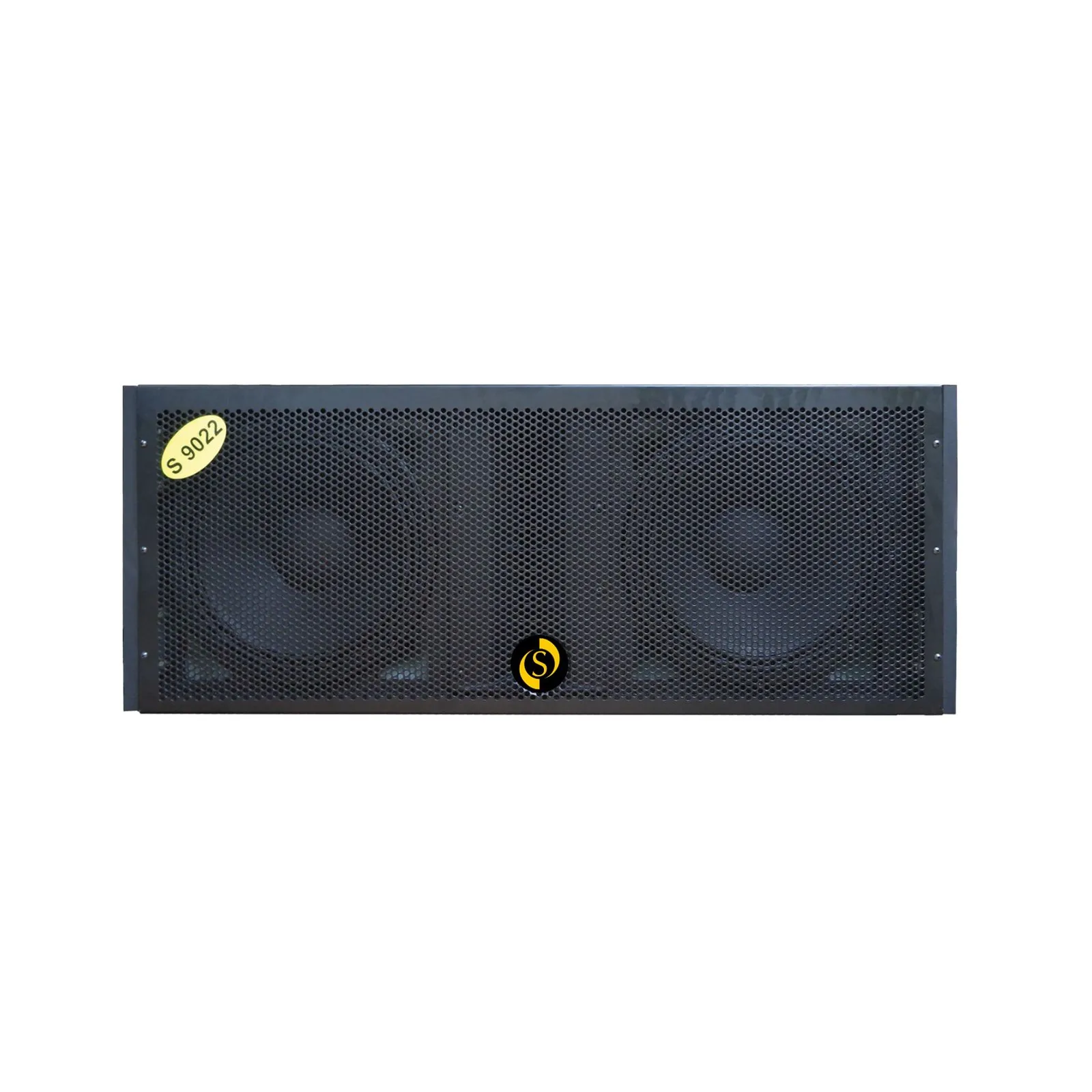

The SM Professional S 9022 is a high performance dual 12” Line Array enclosure optimized to deliver unequalled fidelity and coverage.
When the venue calls for a high-powered array, the S 9022 is the logical choice for demanding designers, operators and audiences.
Features
- High performance dual 12” RCF LF & two High quality 1” HF transducers.
- Exceptional sound quality, powerful response & long throw.
- High grade & durable cabinet design.
- Easy carry handles & heavy duty protective grille.
- Fast, integral rigging system with variable splay angles.
- HF frequency attenuation for selection of throw.
- Constant Curvature waveguide for unprecedented arraycoherence.
- Coverage Pattern: 100° x 9° nominal (horizontal x vertical), single unit.
- Extra textured anti-scratch paint finish.
- High-quality passive crossover network for maximum reliability.
- S 9022 System Consists of:
- S 9022: High performance dual 12’’, 2 way passive, 900 watts line array module.
- S 9022 Kit: Fly bar (Fly bar) & rigging hardware..
Specifications, Q&A and videos
| System Type | Line Array |
|---|---|
| Frequency Range | 50-20 KHz |
| Power Rating RMS / Peak | 900W / 1800W |
| System Maximum SPL | 134 dB |
| Sensitivity (1w @ 1m) dB | 98dB LF / 100dB HF |
| LF Component | 2 x 12" Woofer, 3" In/out Voice Coil |
| HF Component | 2 x 1" Exit, 1.4" Voice Coil |
| Nominal Impedance (Ω) | 4 |
| Horizontal Coverage Angle | 100° |
| Vertical Coverage Angle | 9° |
| Crossover Frequency | 1600 Hz |
| Enclosure | 15 mm Plywood |
| Input Connectors | Speak-on |
| Dimensions (W x D x H) mm | 960 x 560 x 386 |
| HF Selection Switch | HF HI-LO Selection switch (HF attenuation switch 2dB) |
| Variable splay angles | 0°, 3°, 6° & 9° C |
| Net Weight (Kgs.) | 55 |
| Net Weight S9022 Fly Bar (Kgs.) | 17 |
The S 9022 is an SM Professional Flagship passive loudspeakers with RCF transducers in paint-finish wooden cabinet in the S Series rated 1800 WATTS. The SM Professional S 9022 is a high performance dual 12” Line Array enclosure optimized to deliver unequalled fidelity and coverage. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High performance dual 12” RCF LF & two High quality 1” HF transducers; Exceptional sound quality, powerful response & long throw; High grade & durable cabinet design; Easy carry handles & heavy duty protective grille; Fast, integral rigging system with variable splay angles; HF frequency attenuation for selection of throw.
The S 9022 system type is Line Array.
The S 9022 frequency range is 50-20 KHz.
The S 9022 power rating rms / peak is 900W / 1800W.
The S 9022 system maximum spl is 134 dB.
The S 9022 sensitivity (1w @ 1m) db is 98dB LF / 100dB HF.
