SM Professional
S 9021
- Power
- 1000 WATTS
- Series
- S Series
- Category
- Speakers
- Category
- Line Arrays

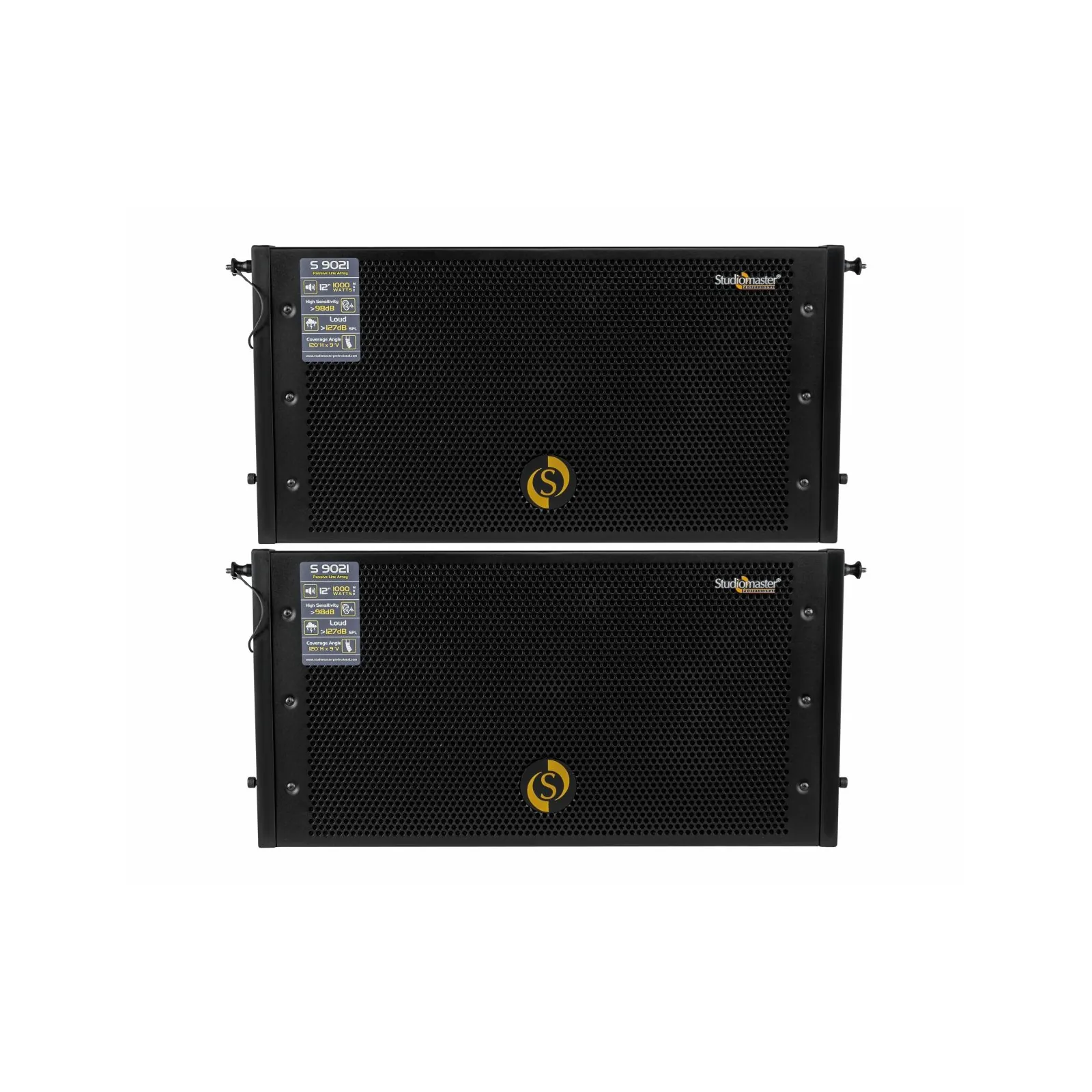

The SM Professional S9021 is a high-quality single 12” 1000W (Peak) / 500W (RMS) passive line array system.
Integrating premium RCF transducers, carefully-selected components and leveraging SM Professional’s years of technical acumen, the S9021 is geared to deliver high-fidelity sonic reproduction and uniform acoustic coverage in live, touring, DJ, and install applications.
Features
- 10 balanced Inputs & Outputs.
- Single 12" RCF LF mid-bass driver with 3" voice coil for detailed mid clarity.
- 1" exit HF compression driver with 1.75" voice coil for clear high frequency response.
- Constant curvature waveguide for unprecedented array coherence and dispersion.
- State-of-the-art crossover design for enhanced frequency response.
- Exceptional sound quality, powerful response and long throw.
- Coverage Pattern: 120° (Horizontal) x 9° (Vertical) for uniform acoustic coverage.

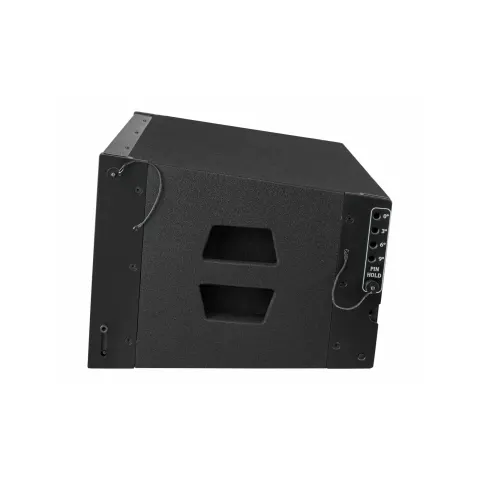

- Variable splay angles (0°, 3°, 6°, and 9°) for versatile array configurations.
- Integrated locking system quick, safe and secure installation.
- Acoustically-tuned and durable wooden cabinet enclosure.
- Attractive speaker grille and anti-scratch textured paint finish for stunning visual aesthetics.
- Dual pole mounts for multiple throw options; straight and angled (up-firing).
- Robust fly bar kit for quick rigging and flying (available separately).
Specifications, Q&A and videos
| Product Type | Line Array |
|---|---|
| Power Output (RMS / Peak) Watts | 500 /1000 |
| Frequency Response (Hz) | 50-20000 |
| System Maximum SPL (dB) | 127 |
| Sensitivity (1w @ 1m) | 98dB LF |
| LF Driver Size | 1 x 12” LF, 3" VC |
| HF Driver Size | 1 x 2” exit, 1.75" VC |
| Nominal Impedance (Ω) | 8 |
| Horizontal Coverage Angle | 120° |
| Vertical Coverage Angle | 9° |
| Crossover Frequency (Hz) | 2.5 |
| Input Connectors | 2 x Speakon |
| Variable splay angles | 0°, 3°, 6°, and 9° |
| Dimensions (W x D x H) mm | 675 x 450 x 350 |
| Net Weight S 9021 (Kg) | 30 |
| Net Weight S 9021 Fly Bar (Kg) | 17 |
The S 9021 is an SM Professional Flagship passive loudspeakers with RCF transducers in paint-finish wooden cabinet in the S Series. The SM Professional S9021 is a high-quality single 12” 1000W (Peak) / 500W (RMS) passive line array system. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
10 balanced Inputs & Outputs; Single 12" RCF LF mid-bass driver with 3" voice coil for detailed mid clarity; 1" exit HF compression driver with 1.75" voice coil for clear high frequency response; Constant curvature waveguide for unprecedented array coherence and dispersion; State-of-the-art crossover design for enhanced frequency response; Exceptional sound quality, powerful response and long throw.
The S 9021 product type is Line Array.
The S 9021 power output (rms / peak) watts is 500 /1000.
The S 9021 frequency response (hz) is 50-20000.
The S 9021 system maximum spl (db) is 127.
The S 9021 sensitivity (1w @ 1m) is 98dB LF.
