1 / 4
SM Professional
Fire 92 V2.0
- Power
- 2200 WATTS
- Series
- Fire Series
- Category
- Speakers
- Category
- Passive Speakers

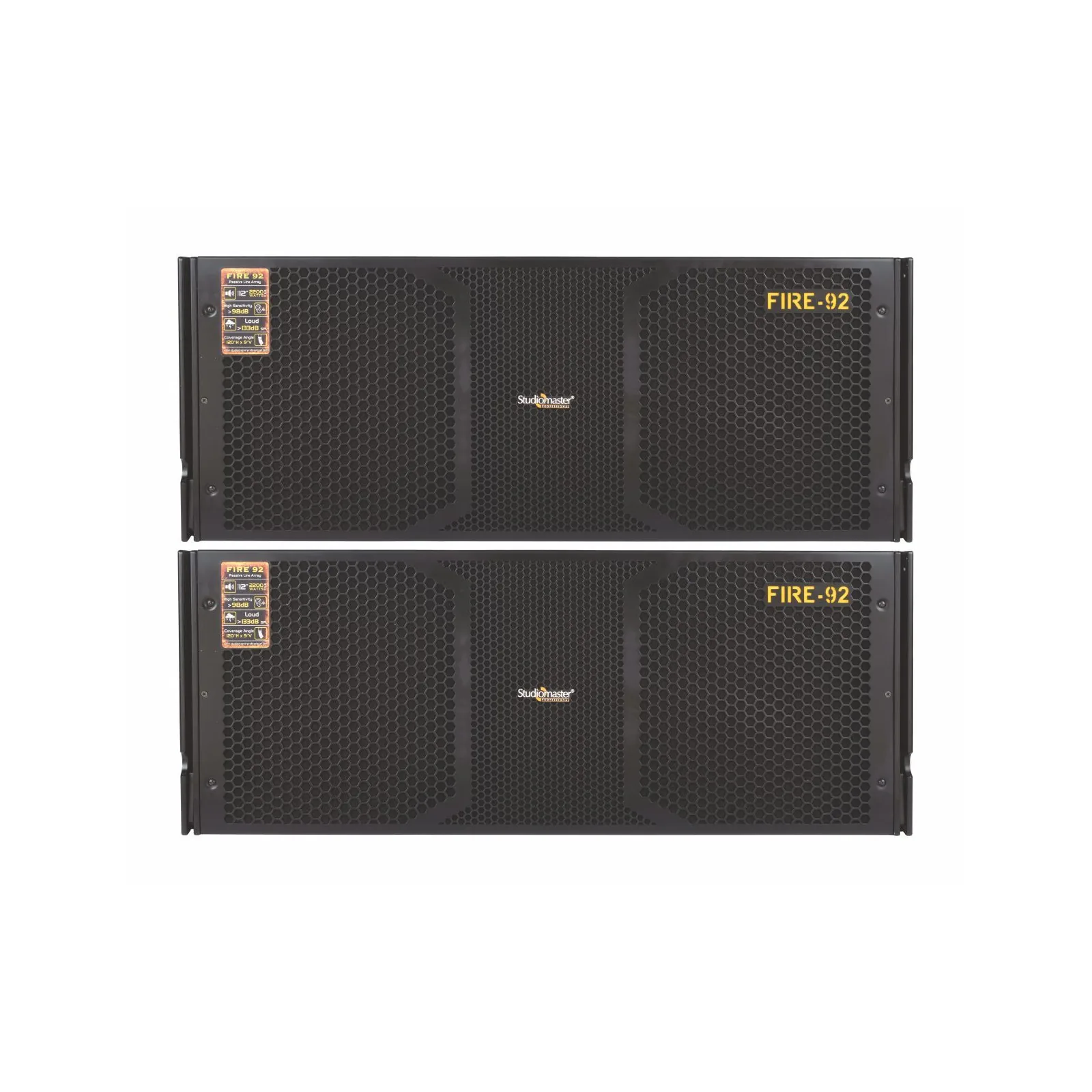

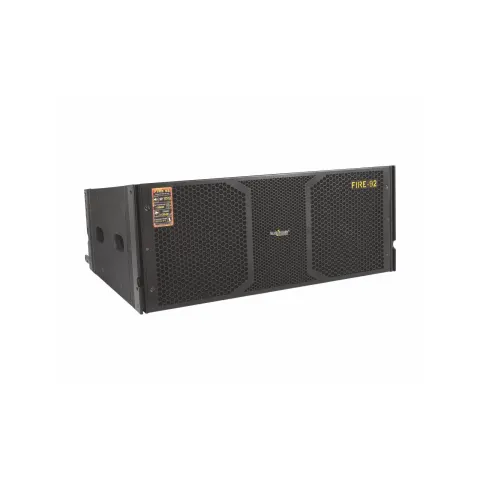

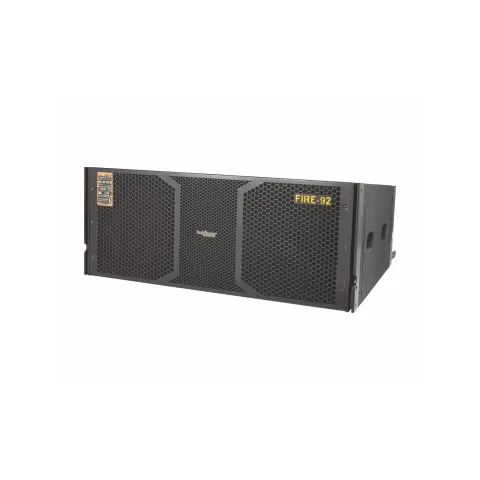

The SM Professional Fire 92 V2.0 is a high-performance dual 12” 2200W (Peak) / 1100W (RMS) passive line array system.
Integrating custom-engineered transducers, carefully-selected components and leveraging SM Professional’s years of technical acumen, the Fire 92 is geared to deliver high-fidelity sonic reproduction and uniform acoustic coverage in live, touring, DJ, and install applications.
Features
- High performance dual 12” LF and 1” HF transducers.
- High Frequency attenuation for selection of throw.
- Constant Curvature waveguide for unprecedented array coherence.
- Coverage Pattern: 120° x 9° nominal (horizontal x vertical), single unit.
- State-of-the-art crossover design for the highest audio efficiency, fidelity, and enhanced frequency response.
- Exceptional sound quality, powerful response, and a long throw.

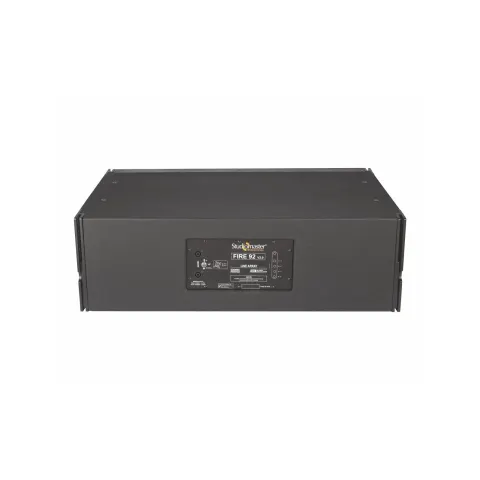

- Professional-quality dual Speakon connectors for input connectivity and linking additional loudspeakers.
- High-endurance and durable cabinet design with a scratch-resistant paint finish built for the road.
- Ergonomically-shaped handles for easy transportation.
- Heavy-gauge perforated metal grille for optimal speaker protection.
- Fast, integral rigging system with variable splay angles.
Specifications, Q&A and videos
| Series | Fire Series |
|---|---|
| Type | Line Array |
| Power Output - RMS / Peak (Watts) | 1100 / 2200 |
| Frequency Response | 80Hz-18kHz |
| System Maximum SPL (dB) | 133 |
| Sensitivity (1w @ 1m) | 98dB LF / 100dB HF |
| LF Driver Size | 2 x 12” LF, 4” in/out VC |
| HF Driver Size | 2 x 2” exit, 1.75 VC |
| Nominal Impedance (Ω) | 8 |
| Horizontal Coverage Angle | 120° |
| Vertical Coverage Angle | 9° |
| Crossover Frequency | 2200Hz |
| Input Connectors | 2 x Speakon |
| Variable splay angles | 0°, 3°, 6°, and 9° |
| Dimensions (W x D x H) mm | 960 x 560 x 386 |
| Net Weight Fire 92 (Kg) | 60 |
| Net Weight Fire 92 Fly Bar (Kg) | 17 |
The Fire 92 V2.0 is an SM Professional Passive loudspeakers in paint-finish wooden cabinets for live, touring, DJ, and install in the Fire Series. The SM Professional Fire 92 V2.0 is a high-performance dual 12” 2200W (Peak) / 1100W (RMS) passive line array system. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High performance dual 12” LF and 1” HF transducers; High Frequency attenuation for selection of throw; Constant Curvature waveguide for unprecedented array coherence; Coverage Pattern: 120° x 9° nominal (horizontal x vertical), single unit; State-of-the-art crossover design for the highest audio efficiency, fidelity, and enhanced frequency response; Exceptional sound quality, powerful response, and a long throw.
The Fire 92 V2.0 type is Line Array.
The Fire 92 V2.0 power output - rms / peak (watts) is 1100 / 2200.
The Fire 92 V2.0 frequency response is 80Hz-18kHz.
The Fire 92 V2.0 system maximum spl (db) is 133.
The Fire 92 V2.0 sensitivity (1w @ 1m) is 98dB LF / 100dB HF.
