SM Professional

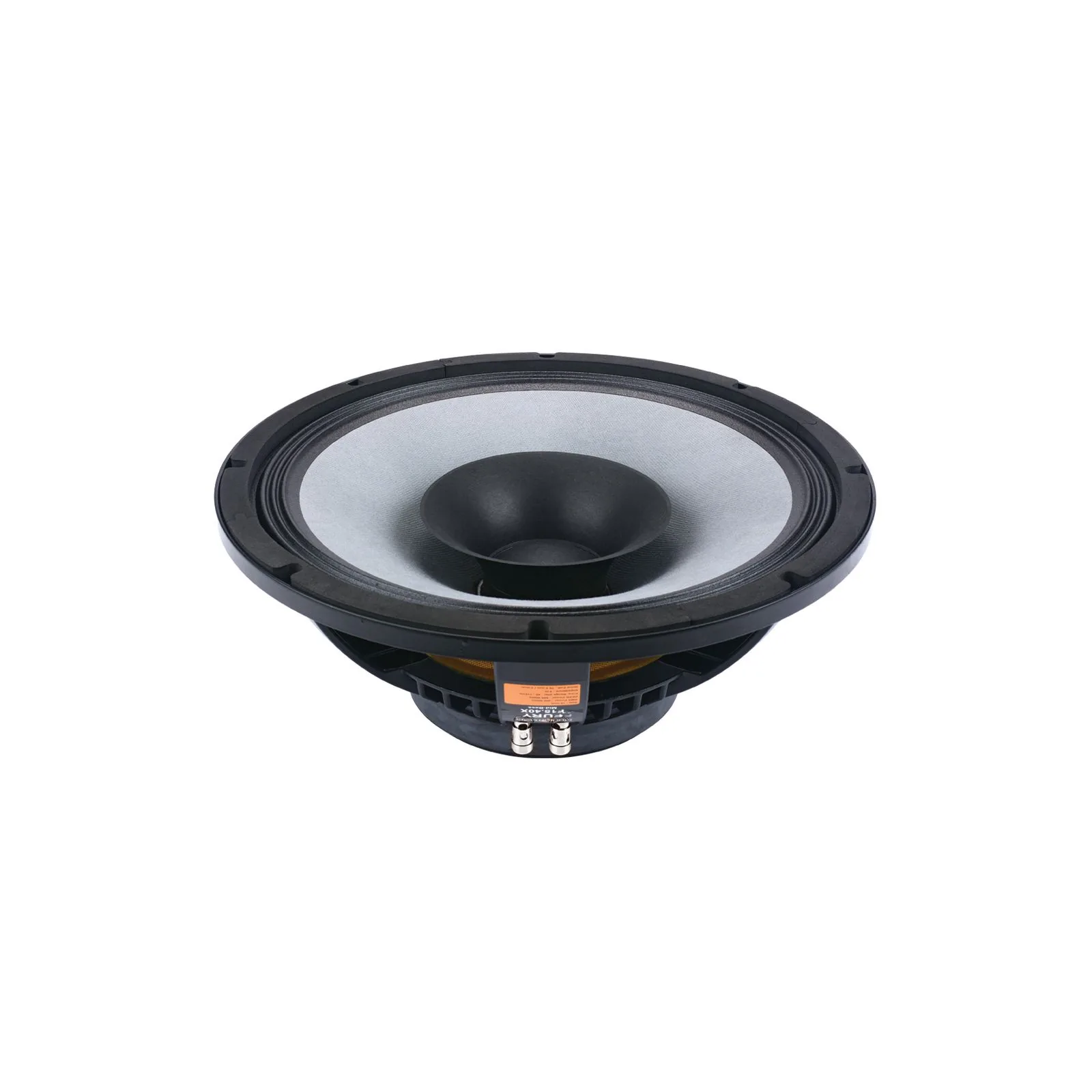

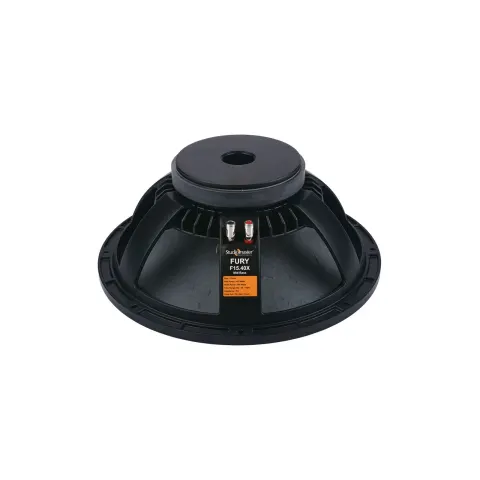

F15.40X (Dual Cone)
- Power
- 800 WATTS
- Series
- Fury Series
- Category
- Transducers
- Category
- Speaker Components
The Fury series is our range of high-performance transducers designed to deliver great sensitivity and excursion capabilities.
Striking a right balance between a powerful sonic performance and affordability, the Fury series is set to be all the rage in loudspeaker design.
Features
- Professional-grade 15” (380mm) diameter mid-bass transducer.
- Features a high-endurance 3” (78.6mm) diameter inside/outside CCAW voice coil.
- Designed to deliver 400W (RMS) to 800W (Peak) power output.
- Wide frequency range of 40Hz-11kHz.
- Impressive sensitivity of 97.5 dB (1w @1m).
- Unique dual cone design for sharper mid frequency reproduction.
- Integrates a high-quality Ferrite magnet for maximum sonic performance.
- Heavy-duty die-cast frame with a wide flange for increased rigidity.
- Engineered to reproduce clear and detailed mid-bass frequencies efficiently.
- Optimized to suit a wide variety of enclosure designs.
Specifications, Q&A and videos
| Series | Fury Series |
|---|---|
| Product Type | Mid-Bass (Dual cone) |
| Power Output (RMS / Peak) Watts | 400 / 800 |
| Frequency Response | 40Hz?11kHz |
| Impedance (Ω) | 8 |
| Sensitivity (1w @ 1m) dB | 97.5 |
| Nominal Diameter (mm/inch) | 380/15 |
| Voice Coil Diameter (mm/Inch) | 78.6 / 3 |
| Voice Coil Material | CCAW |
| Kind of Layer | Inside / Outside |
| Basket | Die-cast |
| Net Weight (Kg) | 6.2 |
The F15.40X (Dual Cone) is an SM Professional Professional transducers and component in the Fury Series rated 800 WATTS. The Fury series is our range of high-performance transducers designed to deliver great sensitivity and excursion capabilities. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional-grade 15” (380mm) diameter mid-bass transducer; Features a high-endurance 3” (78.6mm) diameter inside/outside CCAW voice coil; Designed to deliver 400W (RMS) to 800W (Peak) power output; Wide frequency range of 40Hz-11kHz; Impressive sensitivity of 97.5 dB (1w @1m); Unique dual cone design for sharper mid frequency reproduction.
The F15.40X (Dual Cone) product type is Mid-Bass (Dual cone).
The F15.40X (Dual Cone) power output (rms / peak) watts is 400 / 800.
The F15.40X (Dual Cone) frequency response is 40Hz?11kHz.
The F15.40X (Dual Cone) impedance (ω) is 8.
The F15.40X (Dual Cone) sensitivity (1w @ 1m) db is 97.5.
