The Elan series is our range of multi-purpose professional loudspeakers designed to be a cost-effective solution for live music performances, touring, DJs and installation applications.
Specifications, Q&A and videos

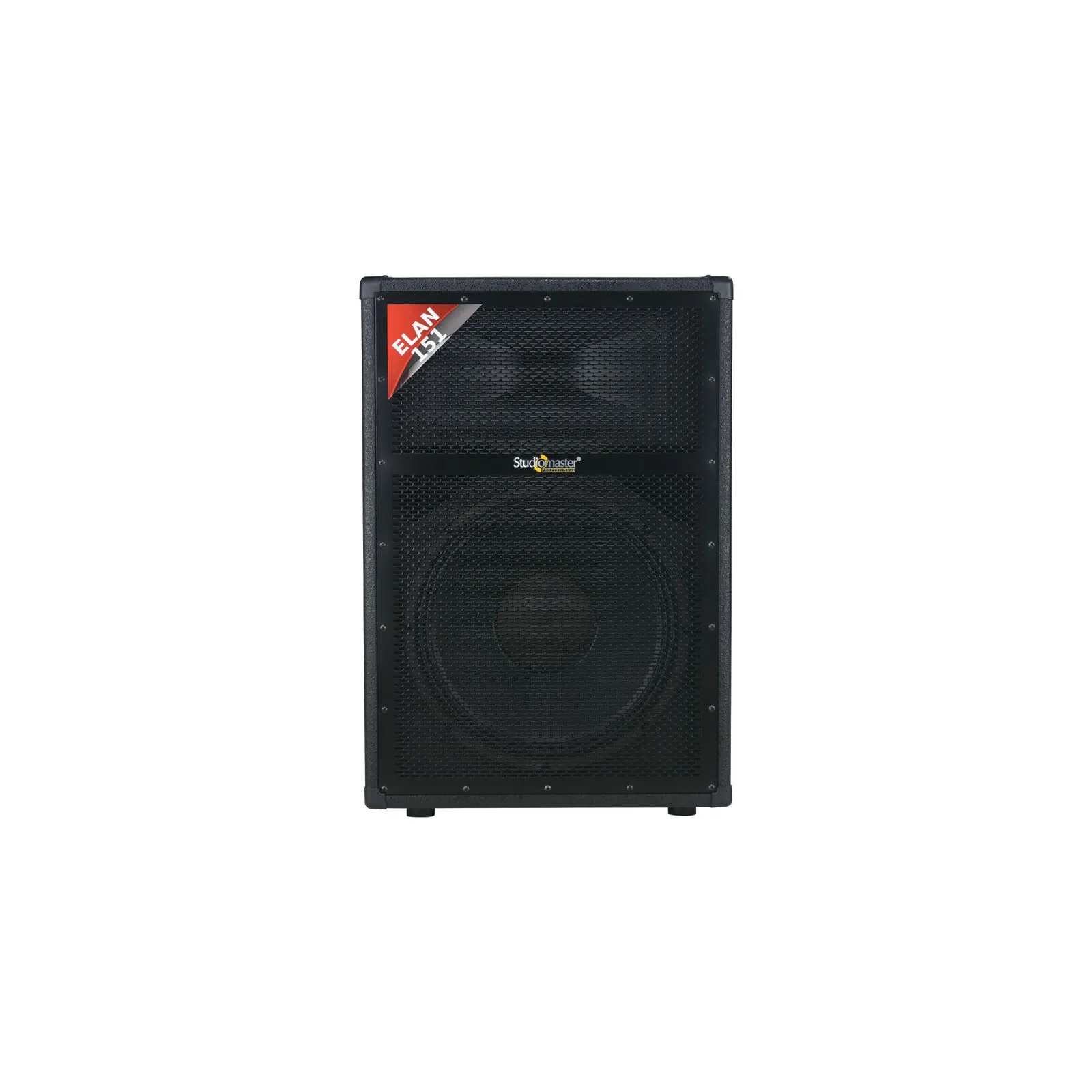

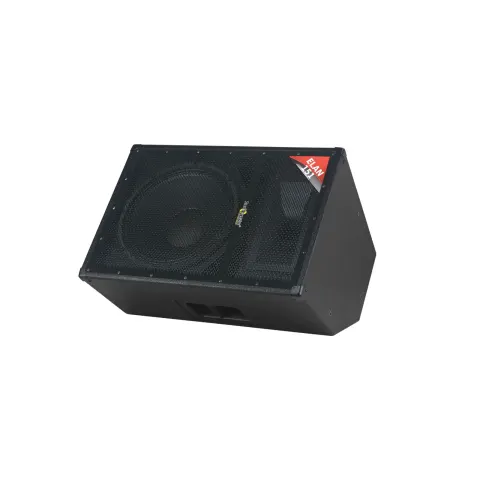

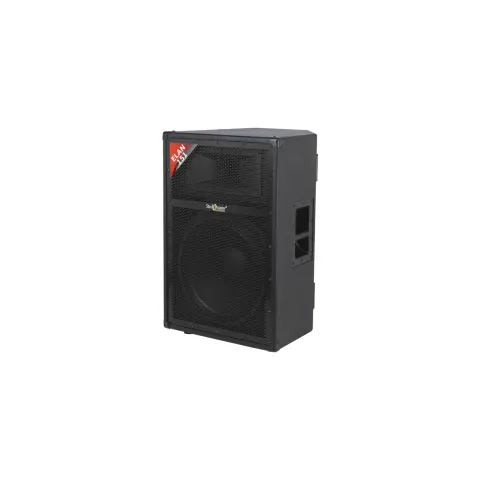

ELAN 151 technical specifications
Product Type
2-Way Monitor Speaker
Power Output (RMS / Peak) Watts
700 / 1400
Frequency Response (Hz)
40Hz-20kHz
Impedance (Ω)
8
Sensitivity (1w @ 1m) dB
98
Max SPL (dB)
128
LF Driver Size
1 x 15” woofer with 4” voice coil
HF Driver Size
1” exit with 2” voice coil
Input Connector
2 x Speakon and 2 x ¼” jack
Dimension (W x D X H) mm
595 x 465 x 720
Net Weight (Kg)
36
01What type of multi-purpose professional loudspeaker is the ELAN 151?
The ELAN 151 is an SM Professional multi-purpose professional loudspeaker in the Elan Series rated 700 WATTS. The Elan series is our range of multi-purpose professional loudspeakers designed to be a cost-effective solution for live music performances, touring, DJs and installation. Available from Mansukhlal Sales Corp, an authorized dealer.
02What are the main features of the ELAN 151?
15” passive floor monitor; Overload protection circuitry ensures optimal HF driver protection; High-endurance and durable cabinet design with an abuse-resistant paint finish built for the road; Ergonomically-shaped handles for easy transportation; Heavy-gauge perforated metal grille for optimal peaker protection.
03What is the product type of the ELAN 151?
The ELAN 151 product type is 2-Way Monitor Speaker.
04What is the power output (rms / peak) watts of the ELAN 151?
The ELAN 151 power output (rms / peak) watts is 700 / 1400.
05What is the frequency response (hz) of the ELAN 151?
The ELAN 151 frequency response (hz) is 40Hz-20kHz.
06What is the impedance (ω) of the ELAN 151?
The ELAN 151 impedance (ω) is 8.
07What is the sensitivity (1w @ 1m) db of the ELAN 151?
