CCS-2200

The CCS-2200 is an Ahuja counter communication system in the Counter Communication. Available from Mansukhlal Sales Corp, an authorized dealer.

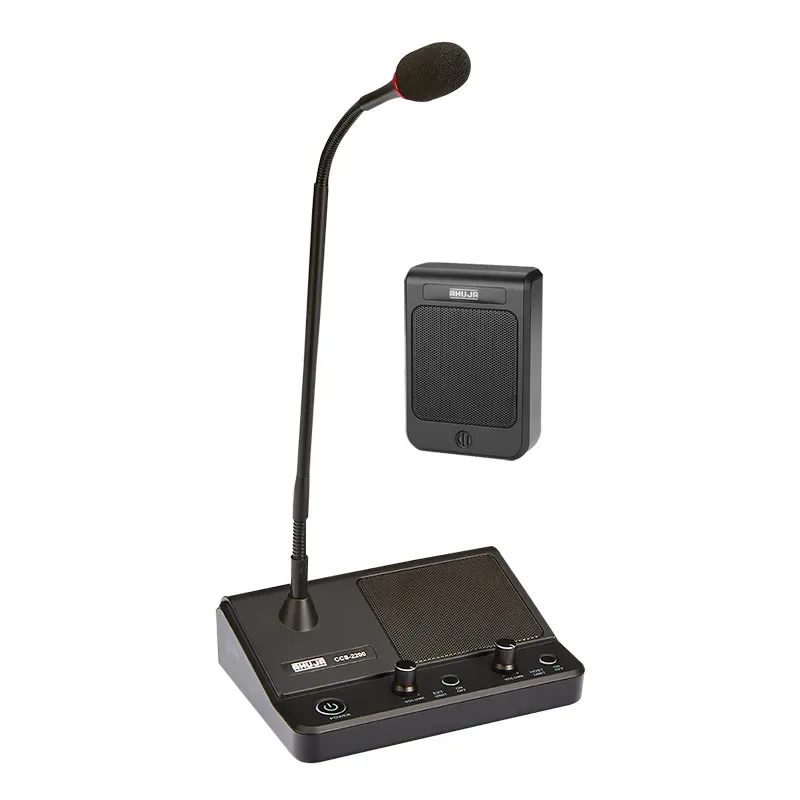

Compact & elegant Attendant Unit with gooseneck microphone, in black colour finish, for flexible sound pickup angle; Separate switches for switching the Host Unit mic, or the External Unit mic, ON or OFF; Separate volume controls on the Host Unit for adjusting the audio output level of the Host Unit and the External Unit; Host Unit mic has automatic voice priority over the External Unit mic. When attendant is speaking into the Host Unit mic, the mic of the External unit is automatically muted; External unit houses a condenser mic cartridge and an efficient speaker for clear and intelligible sound outside the glass barrier; Audio output for recording available through 3.5mm phone jack on the Host Unit. This is a stereo output having signals from both the Host Unit mic and the External Unit mic.

The CCS-2200 output is 2 × 5W (Max.) in each amplifier.

The CCS-2200 microphone element is Electret Condenser in both the units..

The CCS-2200 frequency response is 100Hz-10KHz.

The CCS-2200 power requirement is AC: 220-240V, 50/60Hz.

The CCS-2200 speaker impedance is 4Ω each.
