Ahuja
AWM-700UL
- Series
- AWM Wireless Microphones
- Category
- Microphones
- Category
- Wireless Microphones

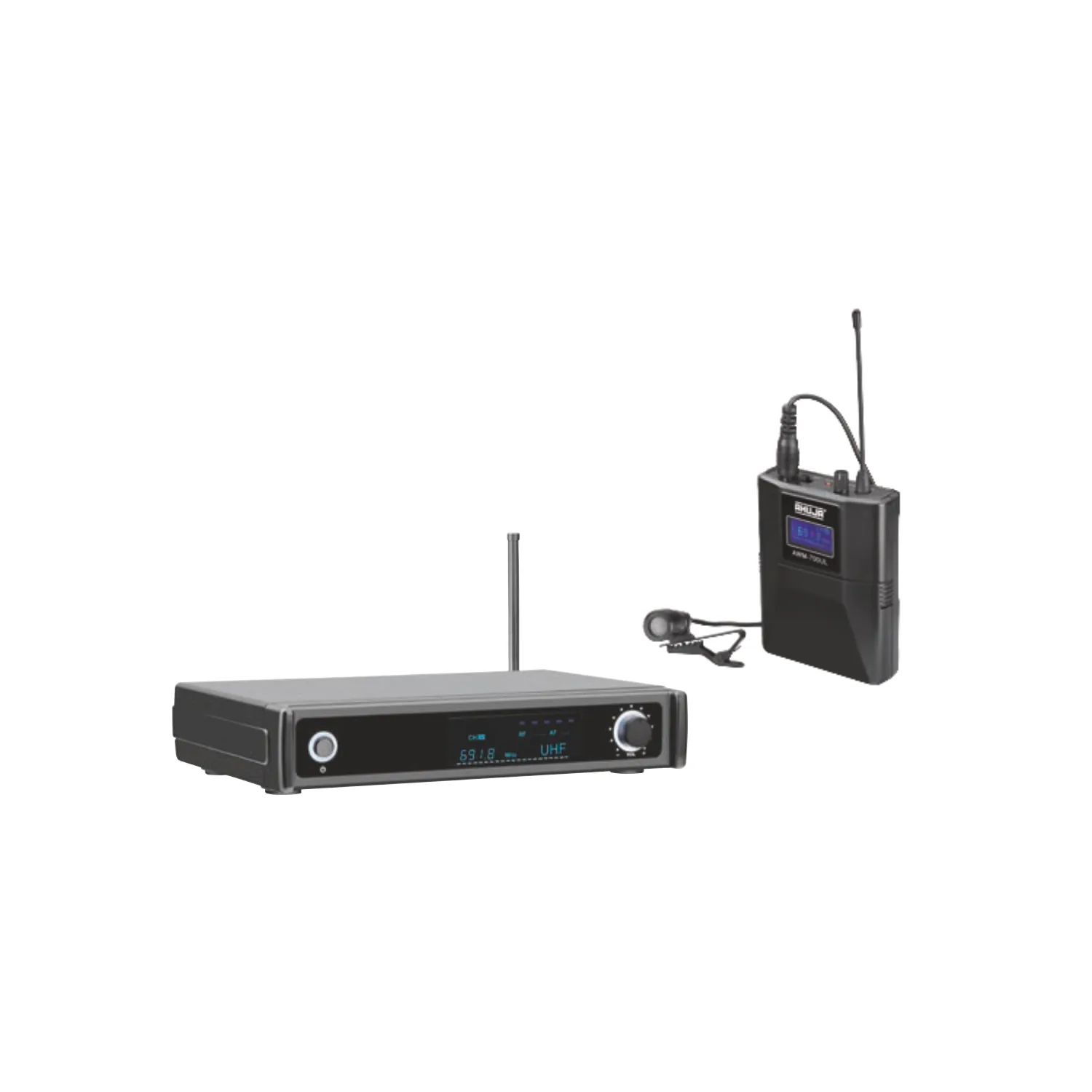

The Ahuja AWM-700UL is a PA uhf wireless microphone with built-in 6.3 mm (1/4”) jack for unbalanced audio output and XLR connector for balanced audio output. Attractive and versatile high performance single channel UHF wireless microphone available in different frequencies.
Receiver operates on 12V DC through an AC adaptor supplied alongwith the transmitter.
Features
- Attractive and versatile high performance single channel UHF wireless microphone available in different frequencies.
- Receiver has built-in 6.3 mm (1/4”) jack for unbalanced audio output and XLR connector for balanced audio output.
- One bodypack transmitter, operating on 2 x 1.5V AA pencil cells.
- Receiver operates on 12V DC through an AC adaptor supplied alongwith the transmitter.
Specifications, Q&A and videos
| Transmitter RF Output | 15mW (Max.) |
|---|---|
| Microphone Element | Condenser, Omnidirectional |
| Frequency Response | 80-15,000Hz |
| Receiver Audio Output | Bal. 0dBu, Unbal. -10dBu |
| Receiver Dimensions | W210 × H42 × D147 mm |
| Receiver Weight | 372g |
The AWM-700UL is an Ahuja PA uhf wireless microphone in the AWM Wireless Microphones. The Ahuja AWM-700UL is a PA uhf wireless microphone with built-in 6.3 mm (1/4”) jack for unbalanced audio output and XLR connector for balanced audio output. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Attractive and versatile high performance single channel UHF wireless microphone available in different frequencies; Receiver has built-in 6.3 mm (1/4”) jack for unbalanced audio output and XLR connector for balanced audio output; One bodypack transmitter, operating on 2 x 1.5V AA pencil cells; Receiver operates on 12V DC through an AC adaptor supplied alongwith the transmitter.
The AWM-700UL transmitter rf output is 15mW (Max.).
The AWM-700UL microphone element is Condenser, Omnidirectional.
The AWM-700UL frequency response is 80-15,000Hz.
The AWM-700UL receiver audio output is Bal. 0dBu, Unbal. -10dBu.
The AWM-700UL receiver dimensions is W210 × H42 × D147 mm.
