Ahuja

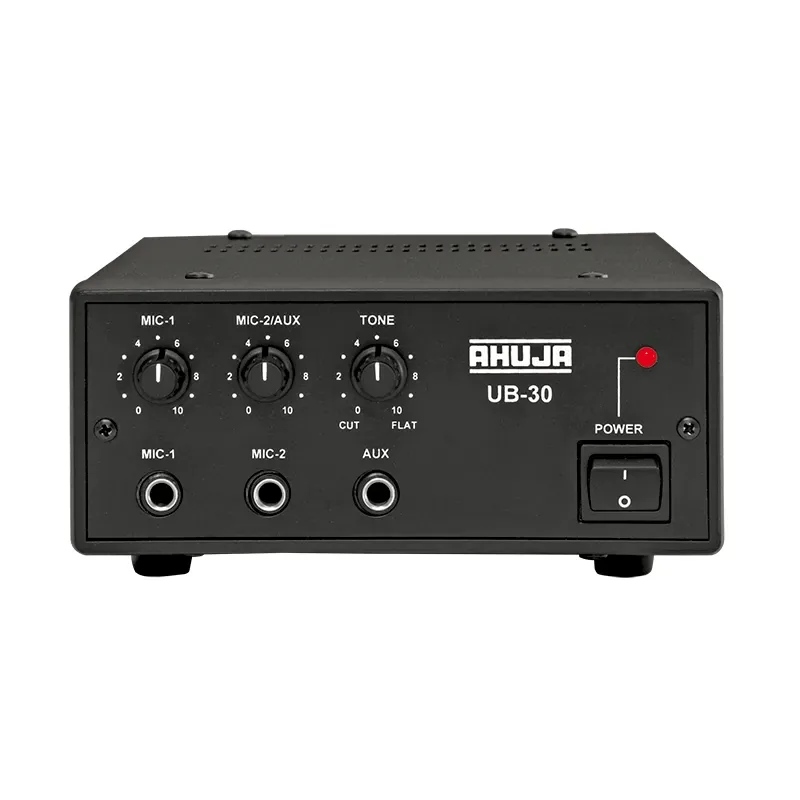

The Ahuja UB-30 is a 25W low wattage PA mixer amplifier. Provision of automatic changeover from AC to Battery operation ensuring continuity of program.
Protection against wrong battery polarity.
| Power Output | 30W RMS Max., 25W RMS at 10% THD |
|---|---|
| Input Channels | 2 × Mic 1.0mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ |
| Frequency Response | 150-10,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | -10dB at 10kHz |
| Speaker Outputs | 4Ω, 8Ω & 16Ω & 100V |
| Power Supply | AC: 220-240V 50/60Hz, DC: 12V (Car Battery) |
| Power Consumption | AC: 80VA DC: 1.2A |
| Dimensions | W180 × H80 × D260 mm |
| Weight | 4.0kg |
The UB-30 is an Ahuja low wattage PA mixer amplifier in the Vehicle Amplifiers rated 25 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
Cut type tone control; 2 POWER SOURCE amplifier: AC mains and 12V DC (Car Battery).
The UB-30 input channels is 2 × Mic 1.0mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ.
The UB-30 frequency response is 150-10,000Hz ±3dB.
The UB-30 signal to noise ratio is 60dB.
The UB-30 tone controls is -10dB at 10kHz.
The UB-30 speaker outputs is 4Ω, 8Ω & 16Ω & 100V.
